Electric wheel | 300 Series - Food Processing Environment - Stainless steel finish & waterproof EZ-WHEEL

Electric wheel | 300 Series - Food Processing Environment - Stainless steel finish & waterproof

Other wheels and rollers for handling

Vote

“ The S300F wheel is the first electric wheel integrating motor and batteries, providing electrical assistance to all types of rolling equipment operating in both indoor and outdoor environments. Thanks to the optimal integration of the motor, batteries and electronics within its hub, the ez-Wheel can be integrated quickly and easily - a safe, clean and silent solution. For many uses and industries, the S300F wheel is an effective tool in the prevention of musculoskeletal disorders (MSD). Musculoskeletal disorders are the leading cause of occupational illness in France and represent a human and economic issue of prime importance for companies. In addition to human suffering, musculoskeletal disorders are the cause of functional deficits that hinder professional activity. They therefore constitute a real risk for the efficiency and competitiveness of the company. ”

Ask for a quote

Presentation

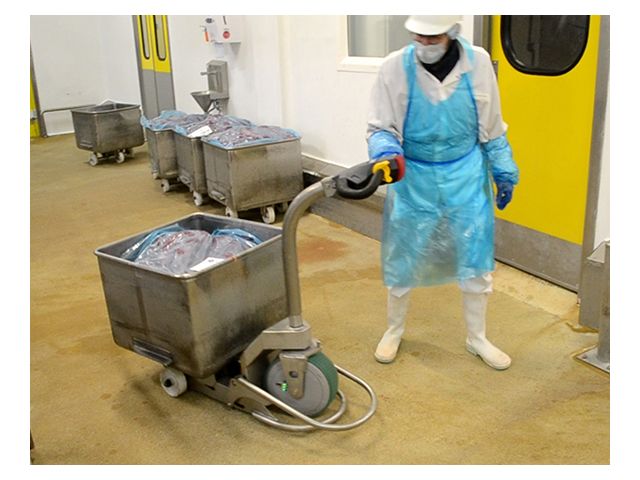

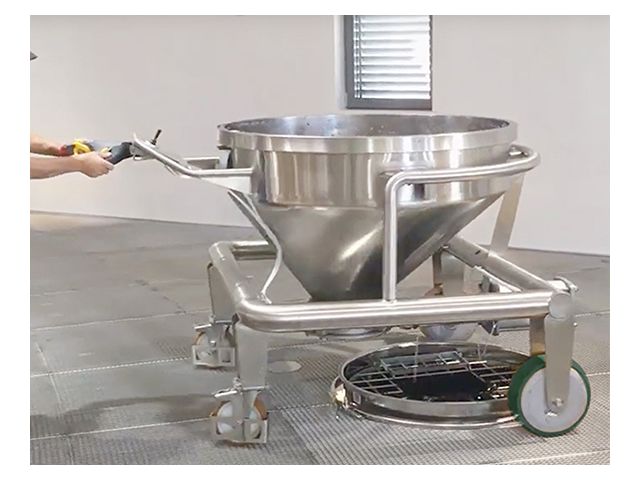

The Series 300F wheels provide quick electrical assistance to equipment operating in food processing such as pusher/puller, tanks, trolleys...
Its full Stainless-Steel IP69K monobloc housing allows complete cleaning of the equipment with a high-pressure jet.
Heavy loads, (up to 1000 Kg) can be moved easily and effortlessly.
The rolling equipment can be used safely thanks to the non-slip polyurethane tire.

Main features of the range :

Ø 304 mm
1000 kg moved
IP69K
50 sh.A Polyurethane enhanced grip

Easy wireless integration on any kind of rolling materials
ezW300F/W wheel controlled by the ezRTH/W/IP tiller head offers a wireless solution without connector, perfect for demanding and wet environments.

Precise manoeuvre and smooth ride
The accurate motorization control allows precise positioning of machines.

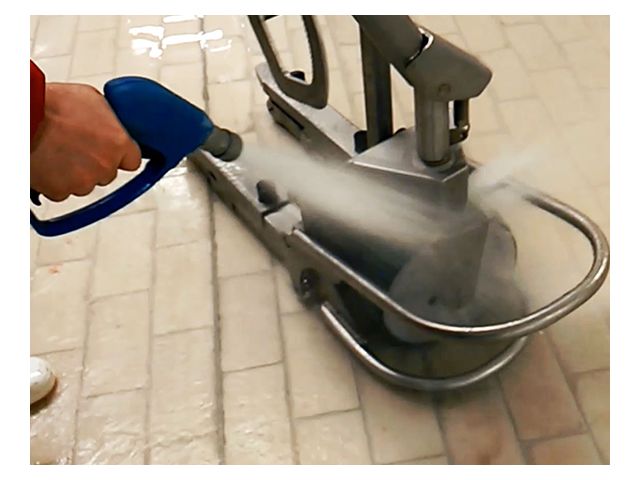

High pressure jet cleaning
The high protection index and the stainless-steel cover of the ezW300F/W wheel allow high pressure jet cleaning, the robustness of the assembly being reinforced by the absence of connectors and fragile units.

Production machinery motorization
Even the most complex production machineries can be motorized by ez-Wheel® electric wheels, thanks to its small dimensions and its standard form factor.

Technical features

Diameter : 304 mm Max vertical load : Up to 300 kg Speed : 0 to 9 km/h Type of tyre : 50 sh.A Polyurethane Nominal Performance : 12 daN at 6 km/h Battery capacity : 240 Wh Peak torque : 52 Nm Pushing effort : 35 daN /1.000 Kg moved

Download the complete technical features
