Elevah 40 Tires

Electric order preparer

Vote

“ New stock picker specifically designed for the tire sector. The tool allows to lift a tire set directly from the ground. ”

Ask for a quote

Presentation

FEATURES

MAXIMUM WORKING HEIGHT: 4 m  

COMPACT: It measures 71,5x178 cm only  

MAXIMUM CAPACITY: 220 kg (1 person)

PICKING TOOL CAPACITY: up to 120 kg

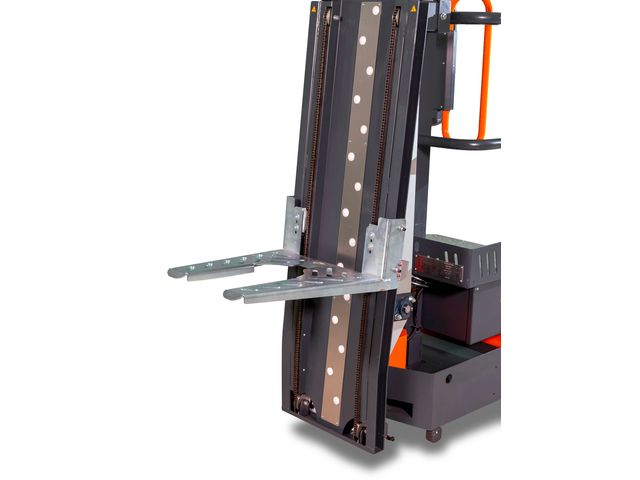

System for picking up the complete set of tires directly from the ground.

ADJUSTABLE STROKE LENGTH: to set the distance of the tires from the operator.

STANDARD COLORING: grey and orange. Customizable coloring upon request. 

STANDARD SAFETY DEVICES

DOOR LOCK: it avoids the accidental opening of the basket  

ADJUSTABLE PICKING TRAY

ELECTRONICAL AND AUTOMATIC PARKING BRAKE  

INTEGRATED CONTROL SYSTEMS  

EMERGENCY DESCENT

New stock picker specifically designed for the tire sector. The tool allows to lift a tire set directly from the ground.

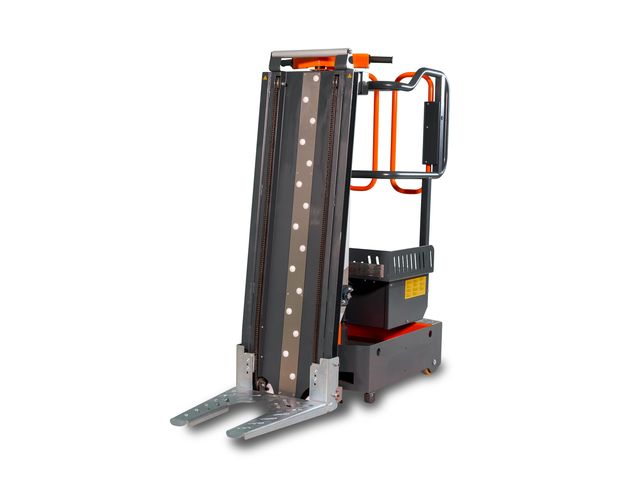

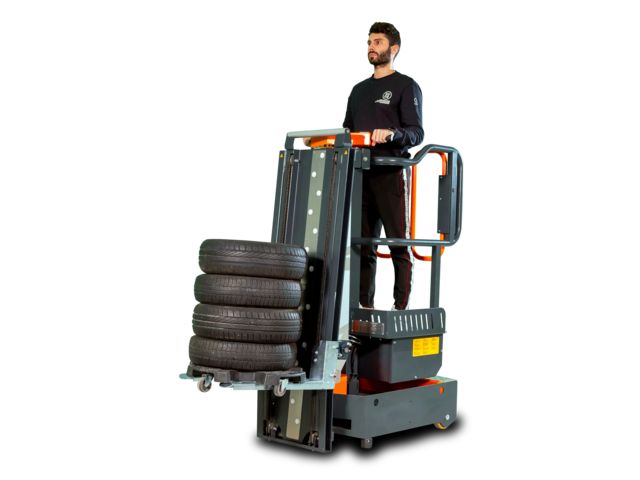

Elevah 40 Tires is the new stock picker specifically designed for the tire sector. The specific tool allows to pick up a set of tires up to 120 kg directly from the ground, optimizing times and doubling the level of safety.

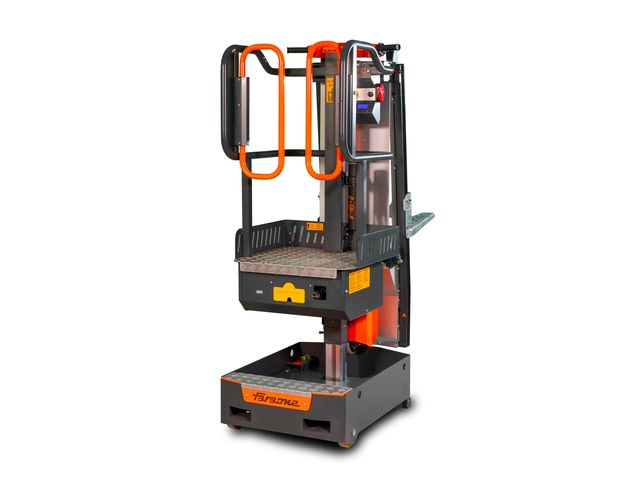

Ultra compact (only 71.5x178 cm), comfortable and easy to maneuver thanks to the convenient handlebar that allows to move from one area to another without getting out of the basket.

Discover all the equipment and accessories to customize your Elevah 40 and fit it to your needs.

Technical features

MAXIMUM WORKING HEIGHT: 4 m   COMPACT: It measures 71,5x178 cm only   MAXIMUM CAPACITY: 220 kg (1 person) PICKING TOOL CAPACITY: up to 120 kg System for picking up the complete set of tires directly from the ground. ADJUSTABLE STROKE LENGTH: to set the distance of the tires from the operator. STANDARD COLORING: grey and orange. Customizable coloring upon request. 
