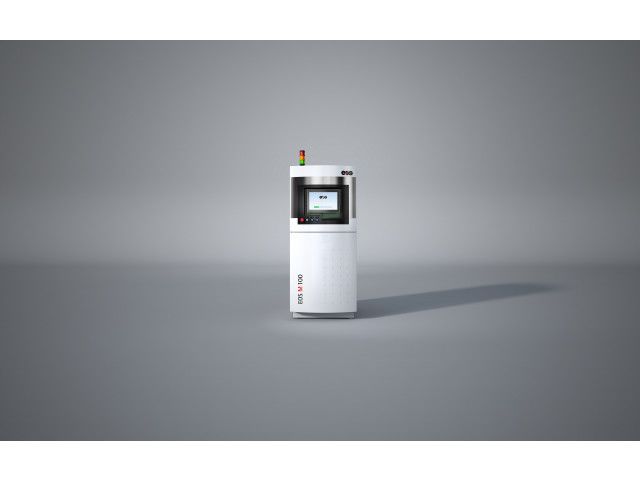

EOS M 100

Other procedures

Vote

Ask for a quote

Presentation

The size and modular design of the EOS M 100 make it ideal as an entry level model for Additive Manufacturing. In terms of process and component quality, it corresponds to the EOS M 290, the leading system on the market for Direct Metal Laser Sintering (DMLS). The beam quality and stable performance of the 200 watt fibre laser guarantee optimum, constant processing conditions for the production of high-quality components. The smaller laser spot with excellent detail resolution is ideal for manufacturing highly complex, sophisticated DMLS components. The building volume and efficient recoating and exposure strategy reduce secondary time, so that parts can be produced quickly and efficiently in small quantities. Thanks to the modular inner design and the powder supply bin, setup and shutdown only take minutes, changing material is straightforward and maintenance is done quickly. The peripheral devices are matched to the industrial manufacturing process and ensure minimum powder contact.

Technical features

Building volume: Ø 100 mm x 95 mm (Ø 3.9 in x 3.7 in) (height includes build platform) Laser type: Yb-fibre laser; 200 W Precision optics: F-theta lens; high-speed scanner Scanning speed: up to 7.0 m/s (23 ft./sec) Focus diameter: 40 μm Power supply: 200 - 240 V Power consumption: max. 1.7 kW / average 0.60 kW Inert gas supply: max. 4,000 hPa, 50 l/min Inert gas consumption: for flooding: up to 600 l / during building: up to 2,5 l/min Dimensions (B x D x H): 800 mm x 950 mm x 2,250 mm (31 x 37 x 89 in)

Download the complete technical features
