Ethernet cable Category 6 | ETHERLINE FD P CAT.6 4X2XAWG26 LAPP FRANCE

Ethernet cable Category 6 | ETHERLINE FD P CAT.6 4X2XAWG26

FTP cable

Vote

Ask for a quote Receive Documentation Contact the supplier

Ethernet cable Category 6, Class E for use in drag chain applications - verified up to 250 MHz.

Industrial Ethernet cable Cat.6 for high flexible use; PUR (UL-approval) outer sheath material, design 4 x2xAWG26/19.

Benefits
  • Highly flexible data cable with PUR outer sheath, meets the highest service life requirements, even under harsh climatic conditions
  • Premium screening against electromagnetic interference
Application range
  • For use in drag chains and moving machinery parts in dry or damp rooms
  • Only for patch cable applications
    (max. 60 m)
  • suitable for EtherCAT and EtherNet/IP applications
  • Plant engineering, machinery manufacturing
  • 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
Product features
  • PUR outer sheath is resistant to most oils and hydraulic fluids
  • Cat.6 for drag chain
  • min. 1 million bending cycles in the drag chain
Norm references / Approvals
  • UL/CSA type CMX (UL 444)
  • Flame retardant acc. to IEC 60332-1-2

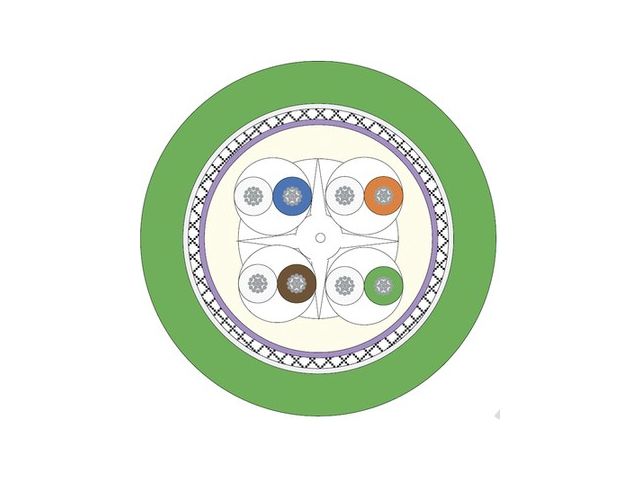

Product Make-up
  • Stranded conductor, tinned
  • AWG 26 (19-wire)
  • PP core insulation
  • Inner sheath: thermoplastic copolymer (FRNC)
  • SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
  • PUR outer sheath, halogen-free
  • Colour: green (based on RAL 6018)



article number: 2170488
