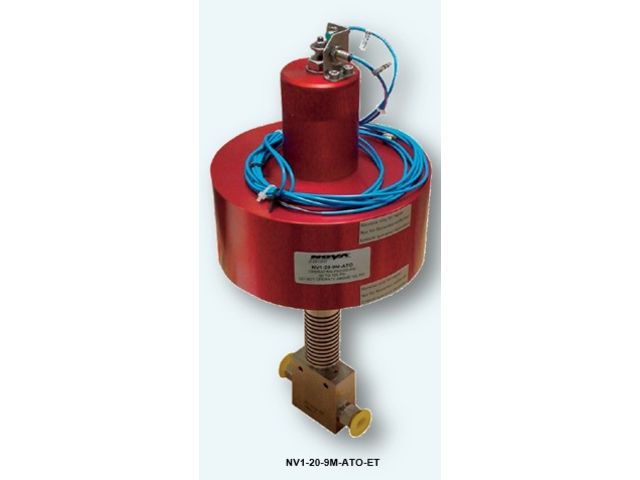

Extreme Temperature Pneumatic Valve

Pneumatic valves, Pneumatic solenoid valves

Ask for a quote

Presentation

General description :

Nova Swiss SARL designs and produces air operated valves for high pressure liquid and gas applications, operating from -200ºC to +300ºC due to an extension adapted for extreme temperatures.

Applications :

All high pressure installations demanding a remote control and working under extreme temperatures from -200ºC to +300ºC (+450ºC with an external cooling system on the extension).

Technical data :

Fluid : liquids or gases
Materials : see brochure (in standard : Stainless Steel 316L)
PED 97/23/EC category : art. 3.3
Air driven alimentation : 5 to 8 bar maximum
Contact for position detection
Connections & types according to Nova Swiss® standards (see brochure)

Tests and provided documentation :

Hydraulic test and gas leakage test (N2)
Technical instructions & compliancy certificates (English, French)

Specific requests :

Other material
ATEX agreement and marking
Additional tests (fatigue life, fluid, temperature, etc.)

Technical features

Download the complete technical features

Latest requests

I am looking for 2 control valves to split a flow in 2 to feed 2 heat exchangers. Here are the conditions for the valves: 1) DN = 12 mmOD Fluid: Mixture of H2, CO2, CH4, H2O, N2 and traces of CO Max Temp: 230-240C Max nominal flow: 100 NL/min Worst flow : 287.5Nl/min Pin max = 25 barA dP = 0.3 bar Kv = 0.15 Normally Open ATEX Zone 2 (T class depends on the type of valve proposed, ex: pneumatic[…] I am looking for 2 control valves to split a flow in 2 to feed 2 heat exchangers. Here are the conditions for the valves: 1) DN = 12 mmOD Fluid: Mixture of H2, CO2, CH4, H2O, N2 and traces of CO Max Temp: 230-240C Max nominal flow: 100 NL/min Worst flow : 287.5Nl/min Pin max = 25 barA dP = 0.3 bar Kv = 0.15 Normally Open ATEX Zone 2 (T class depends on the type of valve proposed, ex: pneumatic would be T2 on the valve and T4 on the controller) 2) DN = 12 mmOD Fluid: Mixture of H2, CO2, CH4, H2O, N2 and traces of CO Max Temp: 230-240C Max nominal flow: 150 NL/min Worst flow : 287.5Nl/min Pin max = 25 barA dP = 0.3 bar Kv = 0.35 Normally Closed ATEX Zone 2 (T class depends on the type of valve proposed, ex: pneumatic would be T2 on the valve and T4 on the controller) Find out more +
