Presentation

The portable solution for dewatering industrial slurry_______
By its innovative and compact design, the Slurryfox SFP 647 effectively seperates solids for reuse or proper disposal.
It´s innovative system and design, make the Slurryfox an economical and ecological benefit.
The SFP 647 is the green solution for proper disposal of concrete slurry in the concrete industry.

The 100 % pneumatic operated filter press can be attached with standard or high volume pump.
Innovative and environmentally friendly
Rugged and compact steel construction
Mobile for jobsite processing
Reuse water multiple times
Solids can be recycled or disposed
Reuse water multiple times

FUNCTIONALITY SFP 647
Economic and environmentally friendly
Solid and compact steel construction
Portable for different job-site installations
Forklift base for easy setup and transportation

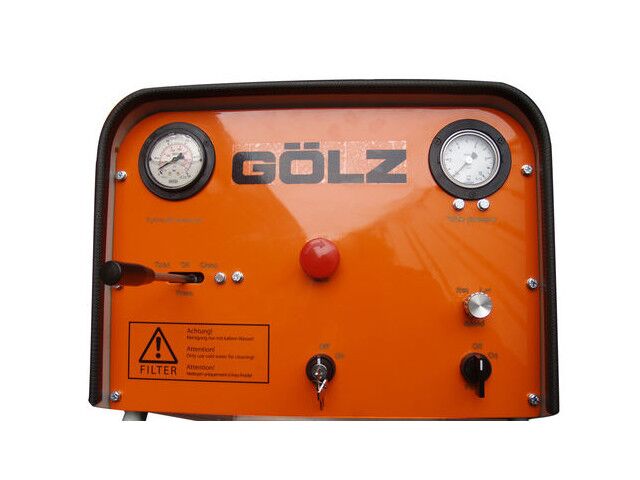

Seperate control unit includes full operation installation as pneumatic airsupply, slurry pump and pneumatic/hydraulic converter and control panel.

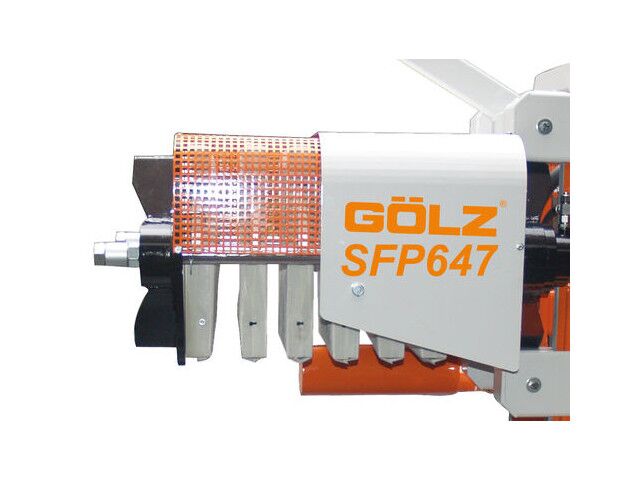

Two hydraulic cylinders are driven by a pneumatic-hy-draulic converter which presses the filter chambers to-gether so that the solids and the water are seperated.

Technical features

Operating: 100% pneumatic Air required: 500 l/min, 7 bar (132 gal/min at 101 psi) Recycling Capacity/hour: 2000 l-Solids 160 kg (528 gal, Solids 350 lbs) Recycling Capacity/cyclus: 400 l-Solids 32 kg (105 gal, solids 70 lbs) Filtervolume (solids): 30 Liter (8 gal) Dimensions (LxWxH): 1200×800×1600 mm (48”×32”×64”) Weight: 520 kg (1.144 lbs)
