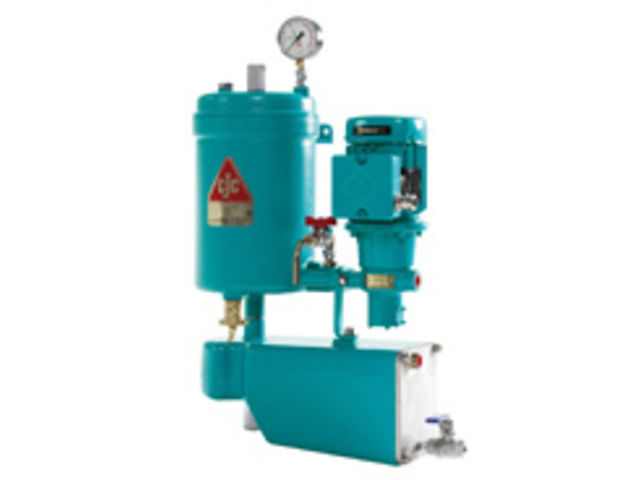

Filter separator - PTU 15/25 Hydraulic

 PTU 15/25 Hydraulic is an off-line oil filtration system combining continuous water separation and oil filtration and is used for:

• hydraulic oils
• lube oils
• gear oils
• turbine lube oils

PTU 15/25 removes water, particles and oil degradation products (oxidation, resin/sludge, varnish).

PTU 15/25 Filter Separator is equipped with manual water discharge and is available in a range of design configurations including preheaters, drip pans, and control boxes. The pressure drop can be monitored on a pressure gauge on top of the filter.

The PTU 15/25 Hydraulic uses one CJC™ Filter Insert BLA 15/25 plus a separate secondary coalescer element.

The PTU 15/25 Hydraulic is ideal for :

•   Power packs.
•     Boiler feed pumps.
•     Steam turbines.
•     Gearboxes with potential water ingress(e.g., wet crushers or marine thrusters)
•     Lubrication oil for labelling machines.
•     and similar industrial and marine application  where water ingress is a recurrent problem.

Special Feature
Retrofit of HDU 15/25 turning it into a PTU 15/25

As the HDU 15/25 is designed as a modular system, it is possible to turn a HDU 15/25 into a PTU 15/25 by retrofitting the separate coalescer housing and changing the insert type to BLA 15/25.

This process changes the water separation method from absorption to coalescing, which is suitable for larger amounts of water and resulting in a reduction of maintenance costs!
