Fire extinguishing system for concrete pits under electrical transformers GMT INTERNATIONAL

Fire extinguishing system for concrete pits under electrical transformers

Fire fighting

Vote

Ask for a quote

Presentation

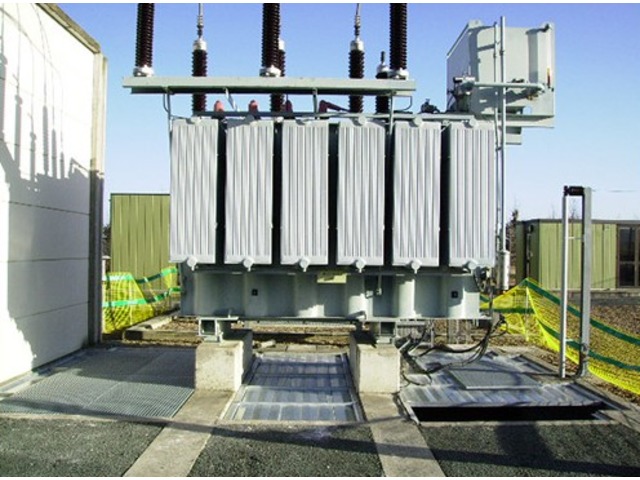

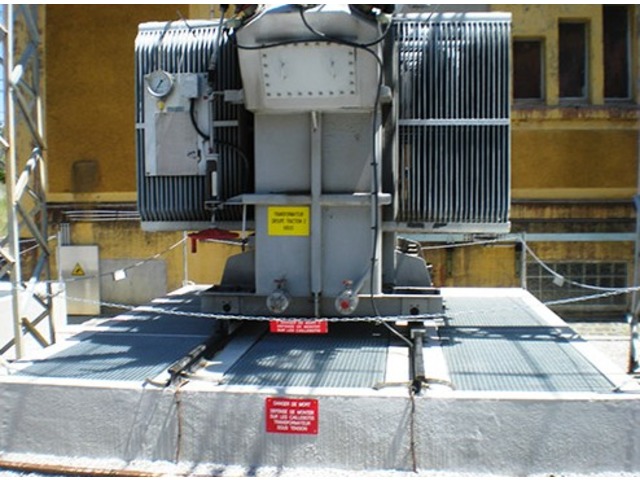

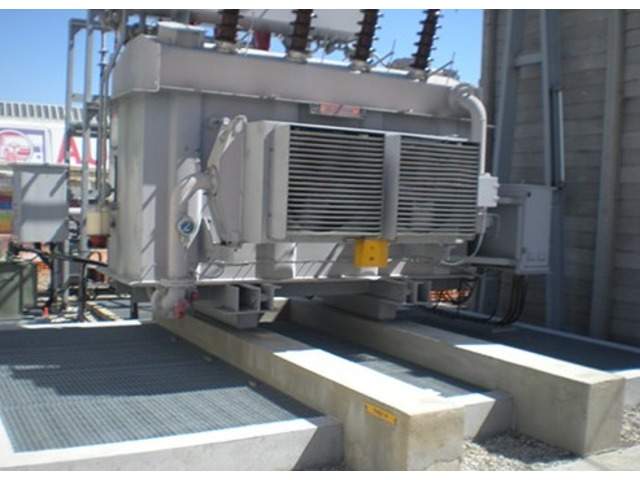

For pits located underneath high voltage transformers (63 to 400 kV)

- To bring transformers into compliance with the applicable fire prevention regulations
- Permanently replaces the formerly used pebble beds
- Pit renovation or new installations
- Quick to install
- Dielectric oils are quickly drained into the pit
- Natural flame extinction without risk of fire resumption

Design

- Patented fire extinguishing system composed of a set of factory-assembled galvanised steel baffle plates 1.5 mm thick galvanised steel baffle plates
- Copper or stainless steel grounding lug
- 5mm thick galvanised frame
- 30x30x30mm-thick galvanised grids placed over the baffles to enable maintenance of the equipment and allow personnel to access the area

Installation

- To be placed directly on the previously installed support beams and edge brackets
- The equipment must be installed by a company approved by AKHELEC to allow for insurance and delivery of a certificate of compliance
- Otherwise, an acceptance audit must be carried out for the AKHELEC warranty to be valid
