FMS SuSi® laminar flow filter fan unit (Super Silent)

Clean room

“ - Super-silent noise level (SuSi®) - HEPA14 filter - The modules can be mounted directly above various workstations or on a machine. - six different sizes - from 0.37 to 1.12 m² of filter area ”

Ask for a quote

Spetec modules achieve a special particle-free air quality through the integration of fans and filter systems: the modules generate a unidirectional air flow and the filter system removes particles from the aspirated air.

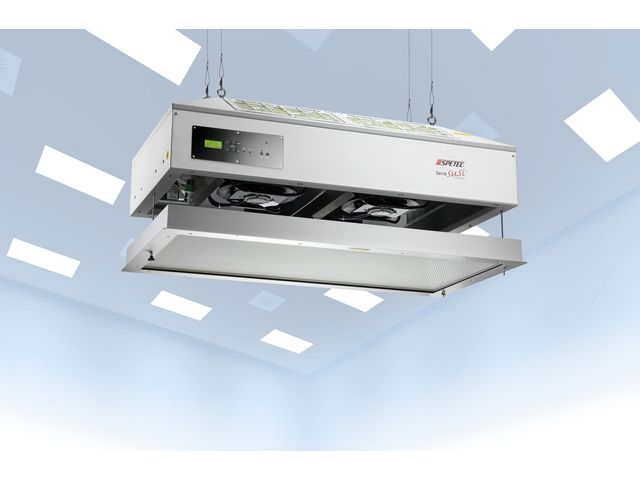

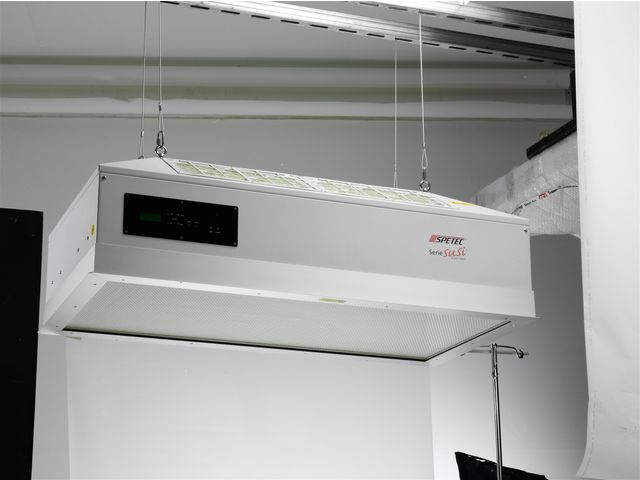

The laminar flow module, equipped with a ceiling attachment system, can be used, for example, as a fresh air shower or can be integrated directly into the housing of a machine. Up to 100 slave modules can be controlled with a single control unit (optional) using the Master / Slave function.

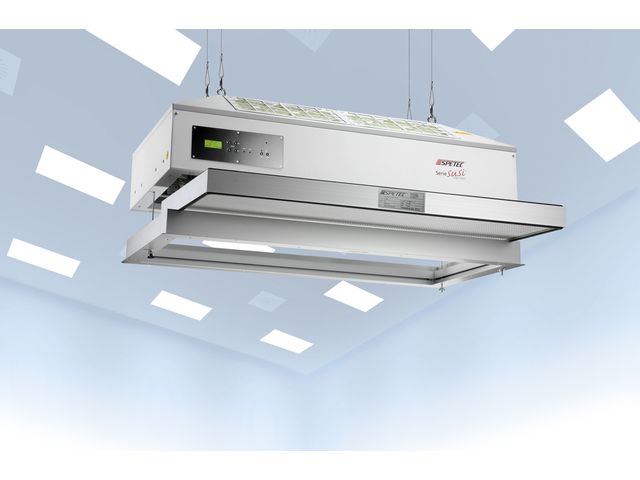

The main filter is installed in a cassette screwed underneath the filter module. This form of installation is particularly advantageous when the modules are suspended from the ceiling or mounted on clean room cells. The filter can thus be easily replaced from below. If the manufacturing process does not allow replacement from below, it is also possible to replace it from above.

The laminar flow modules can also be used in cleanroom systems with fixed walls or cleanroom cells equipped with a strip curtain.

The flow speed can be adjusted in 8 steps. The setting includes the "night lowering" (eco) mode to save energy costs as well as the "MAX" function when the workplace, rooms or appliances are to be cleaned.

    8-stage flow speed control with night lowering and purging function
    LED indicator of the set flow speed in m/sec.
    automatic flow adjustment (optional)
    fault display and filter change signal
    interior lighting switchable via control panel (optional)
    connection to the building management system (PLC interface) possible (optional)
    service interval indicator, depending on the duration of use
    Master / Slave function: mounting position independent of the laminar flow module

Energy consumption is reduced to a minimum thanks to the use of latest-generation DC fans with very high efficiency.

Technical features

filter area 0,24m² / 0,37m²/ 0,56m² / 0,75m² / 0,93m² / 1,12m 8 steps air flow setting, reproducible values Indication for fault and filter charging Including eco mode (night), purge function and operating hour counter HEPA 14 filter class ISO 5 acc. DIN 14644-1 Master/Slave function: Position of Control Panel for Laminar Flow Module freely selectable Exceptionally quiet electronically commutated (EC) fan Maintenance-free fan unit low operation costs
