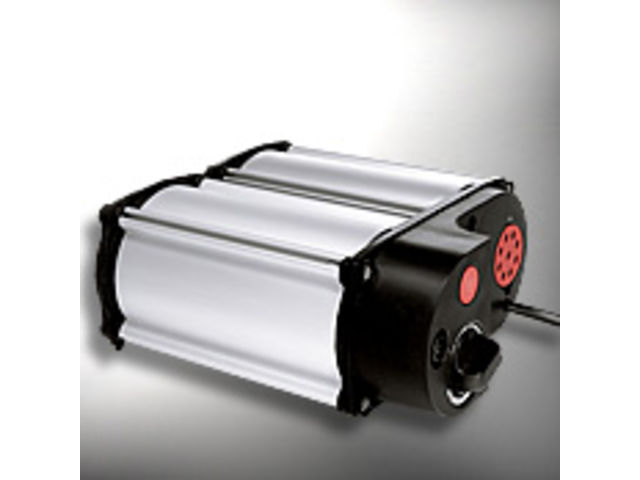

Gas and air pumps: Vibrating Diaphragm Pumps 802 series

Gas and air pumps: Vibrating Diaphragm Pumps 802 series PIOT & TIROUFLET - SCHWARZER PRECISION

Gas and air pumps: Vibrating Diaphragm Pumps 802 series

Electric membrane pumps

Vote

“ • oil free • maintenance free • reduced vibrations • low noise • very long life time ”

Ask for a quote

Presentation

Reference:

• SP 802 SA-D

Motor:

• Power source [Vdc] : 230 (SA-D), 230 (SA-DD) / 230 (50 Hz) , 120 (60 Hz)

• Power consumption [W]: 7.5

Pneumatic performance:

• Free flow [l/min] : from 6.5 to 7.5

• Max. pressure[mbar] : from 280 to 300

• Max. vacuum [mbar] : from - 250 to -280

SA: Vibrating Diaphragm Pumps – ideal for continuous operations

Because these pumps are run by an electronic magnet, the complexity of a motor driven technology is unnecessary. The vibrating diaphragm pumps run completely frictionless. The outcome is an extremely high durability – ideal for continuous operations.

Low pressure, high volume performances and a prominent operation smoothness – these characteristics are ideal for stationary analysis machines.

In additon, there is an optimal cost/performance ratio: ideal for mass productions.

For different specific applications, the pumps of the construction series SA are available as:

AC Model – for operations on AC voltage,
DC Model – for operations on DC voltage,
DV Model – to optimize pressure performance,
VD Model – to optimize vacuum performance.
