High-capacity molybdenum wire EDM machine

Wire cutter

“ High precision and machining quality High capacity for heavy and large workpieces Ease of operation and maintenance ”

Ask for a quote

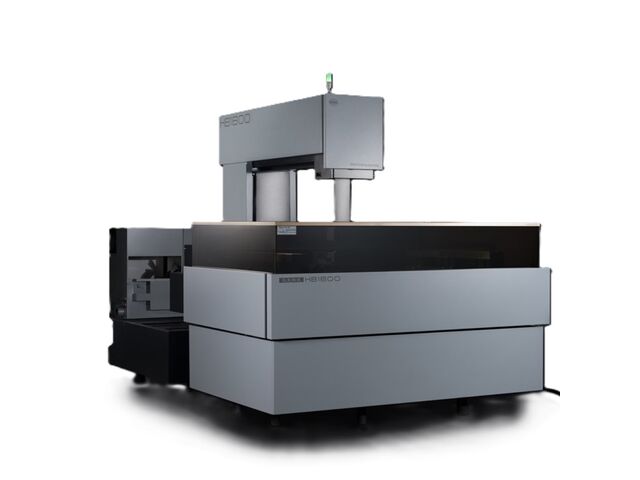

HB1600 high-capacity molybdenum wire EDM machine, designed for machining heavy and large parts.
Equipped with Mitsubishi AC servo motors on the X, Y, U, and V axes, ensuring high precision, particularly for tapered machining.

Interactive system on a Windows platform with a 15-inch LCD screen.

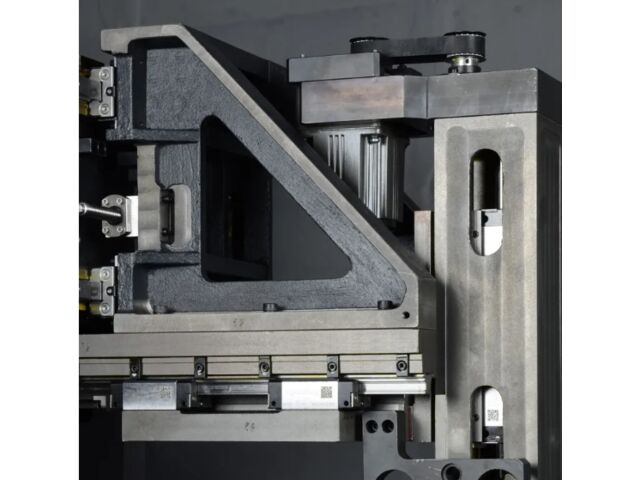

Ball screws and linear guides (THK, Rexroth, or KSS).
Complies with the national standard JB/T11999.1-2014 for medium-speed wire EDM.
Centralized lubrication (Easy maintenance)

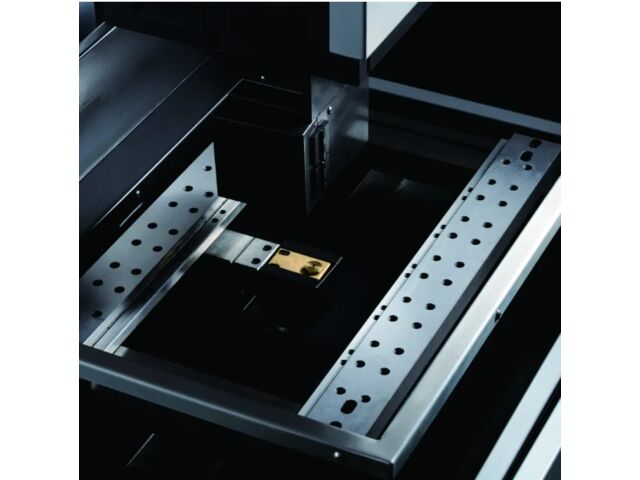

Lifting barrier: Facilitates workpiece setup and the handling of heavy workpieces.
Digitized Z-axis, linear motors on the X and Y axes, or a cutting device for soft materials.

Technical features

Axis travel (X x Y): 1600 x 1200 mm. Dimensions of the work table: 2400 x 1540 mm. Maximum workpiece dimensions: 2400 x 1540 x 600 mm. Maximum part weight: 8,000 kg. Maximum machining thickness: 600 mm as standard (optional up to 1,000 mm). Maximum cutting speed: ≥ 300 mm²/min. Maximum surface roughness: Ra ≤ 0.6 µm. Taper accuracy: ±10° for a thickness of 100 mm. Non-electrolytic technology: a high-speed power supply that inhibits corrosion, improves surface quality, and prevents discoloration (particularly on titanium).

Usage scope

Industry Manufacturing industry Industrial subcontracting
