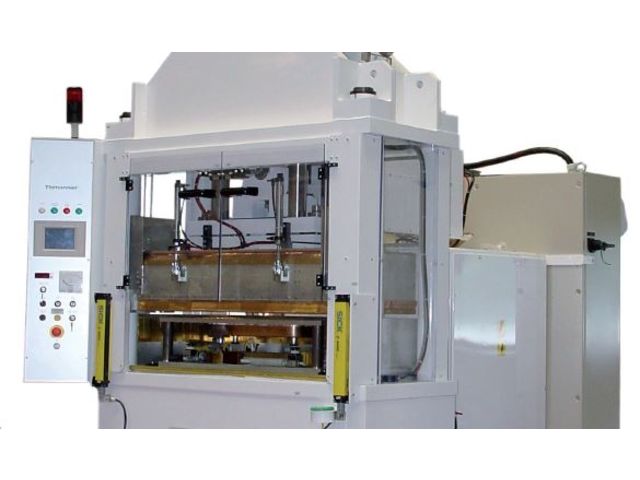

High-frequency electric press for sun visor manufacturing ZHP30

Electric injection molding machine

Vote

Ask for a quote

Presentation

Production of very high quality parts intended for the most demanding car manufacturers.

Cutting and welding of a wide variety of materials: pvc, pvc coated fabrics, tpo (with hf 40 mhz option).

Machines for related applications:
- Press for RF welding of the mirror frame on the sun visor
- Automatic press for RF marking and cutting of sun visor pockets
- HF press for integration into an automatic production line.

Highly ergonomic and easy-to-use machine:
- Work sitting or standing
- Easy positioning of parts owing to shallow press depth
- Flush touch control keys for operator comfort
- High accessibility to the control panel
- Workstation lighting
- Light curtain offering a safety level of SIL 4

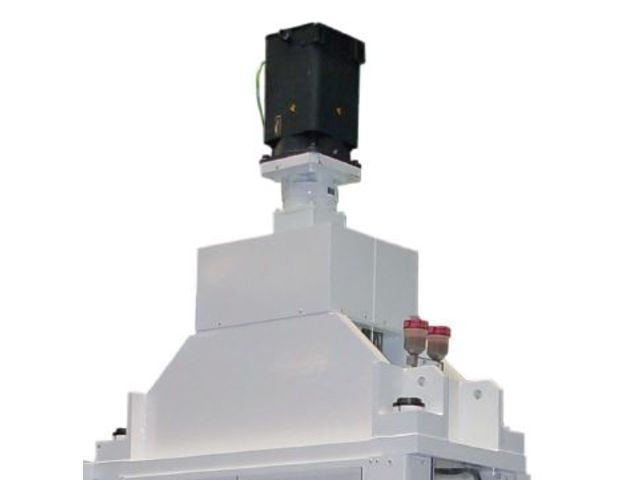

- Silent operation (servomotor + satellite roller screws): reduced noise
and power consumption thanks to the replacement of the hydraulic
unit by an electric actuator

OPTIONS :
40.68 MHz generator
Manufacture of various products (following a preliminary study by Thimonnier)

Technical features

Tool footprint: 400 x 800 mm Tool support plate: 820 x 400 x 20 mm max. Tool height: min.: 135 mm - max.: 160 mm Power supply: 400 V 3PH + N - 50 HZ - Installed capacity = 90 kVA ompressed air supply: Supply pressure = 7 to 9 bar - Operating pressure = 6 bar - Q = 2 Nm3/H Production rate : 250 to 300 units/hour Production rate : 250 to 300 units/hour

Download the complete technical features
