High performance hybrid machine

Mixed injection molding machine

Vote

“ Flexibility, speed, dynamic and high precision hybrid machine HIDRIVE. ”

Ask for a quote

Presentation

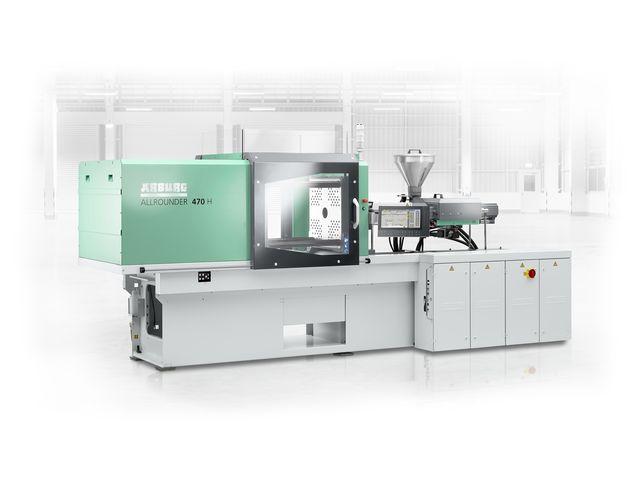

The intelligent concept of our hybrid ALLROUNDER combines sophisticated electric and hydraulic clamping and injection units, as well as ARBURG‘s unique control technology, to create a particularly cost-effective series. Thanks to the high flexibility of our modular design system, a machine series has been created that provides you with uncompromising high performance.
With the HIDRIVE, you always implement your production tasks at competitive unit costs, no matter how demanding they become.

Machine concept: ideal for mass-produced technical items
• Extremely short dry cycle times
• Simultaneous movements
• Large, dynamic injection flows
• Up to 40 percent reduced energy requirement

Machine is available in different versions as LSR processing.

You can add on machine all handlings range from ARBURG, from sprue picker to 6-axis handling.

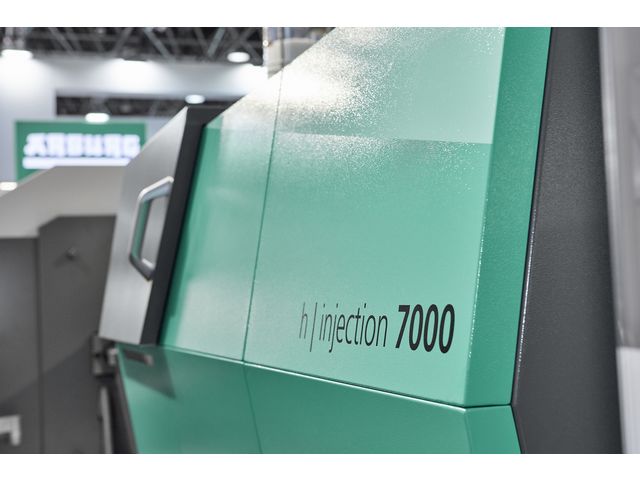

Distance between tie-bars are between 270 and 1120 mm, for clamping forces between 350 and 6500 kN. Injection units available are from size 70 to 7000

Technical features

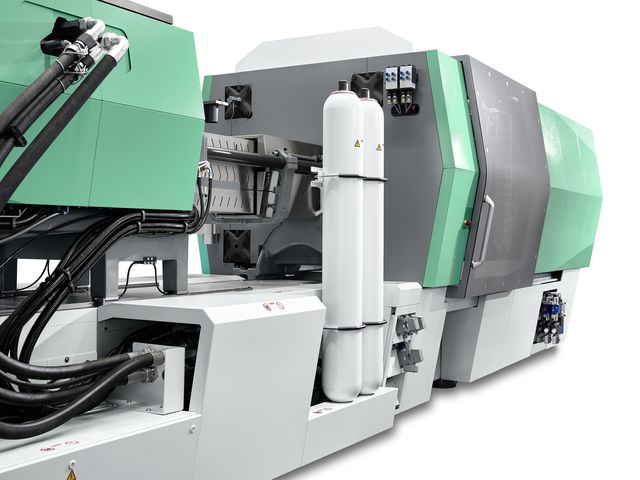

10 machines sizes available Hybrid machine, electric clamping, hydraulic injection via accumulator Special version available (LSR, PIM, etc.) Integration of all ARBURG's handling range Proven-technology Direct drives, no belt

Download the complete technical features
