REALMECA

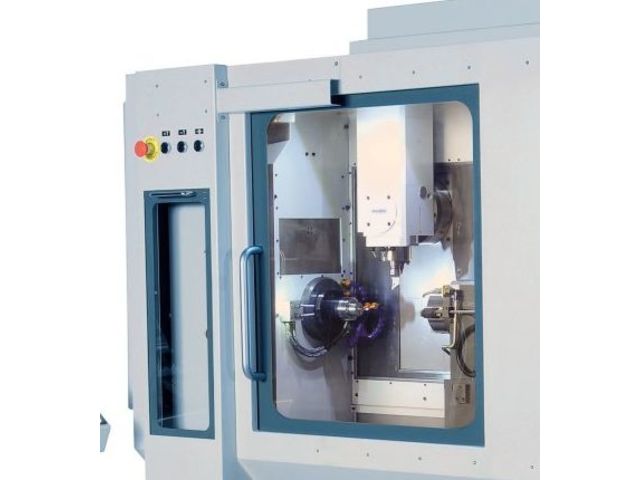

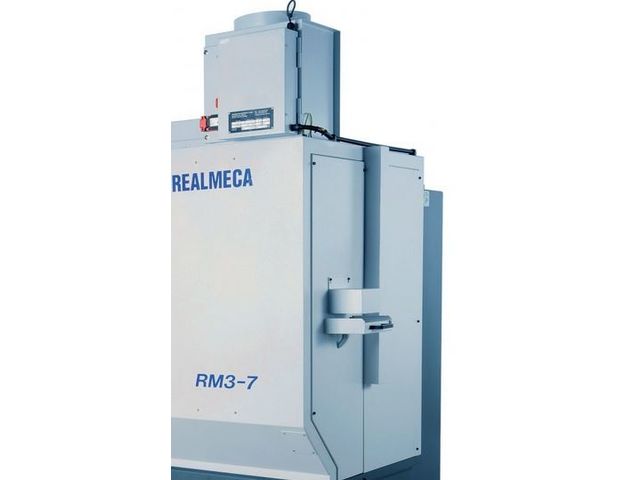

High-precision machining center : RM3-7 REALMECA

High-precision machining center : RM3-7

Machining centre

Vote

Ask for a quote Receive Documentation Contact the supplier

Capacity

Stroke Z1 : 580 mm
Stroke Z2 : 585 mm
Stroke Y : 140 mm
Stroke X : 285
Stroke B : -30 + 210
Stroke C1-C2 : 360°

Milling spindle hsm

Max, Spindle speed Rpm : 50 000
Power spindle motor : 2,5 kW / 3,2 kW
Spindle taper

TURNING SPINDLE 1

Max, Spindle speed Rpm : 6000
Power spindle motor KW : 3,7
Spindle nose : diam 90
Bar capacity (mm) :32

Turning spindle 2

Max, Spindle speed Rpm : 6000
Power spindle motor KW : 3,7
Spindle nose : diam 90

Feedrate

Cutting feed : 30 m/mn
Rapid feed : 30 m/mn
B Axis  Rpm : 35
C1-C2 Axis  Rpm : 100
Resolution : 0,1µ / 0,001°

Automatic tool charger

Tool charger capacity : 60

Dimension / weight

Length/ Width/ Height : 2200*2150*2000 mm
