Hollow Piston Cylinders WZ 3.1403 ROEMHELD

Hollow Piston Cylinders WZ 3.1403

Hydraulic jacks

Vote

Ask for a quote Receive Documentation Contact the supplier

Application
These hollow piston cylinders are used for unpressurised long-term clamping of dies or fixtures on press beds and rams Thanks to their compact design, they can also be used where the available space is limited

Description

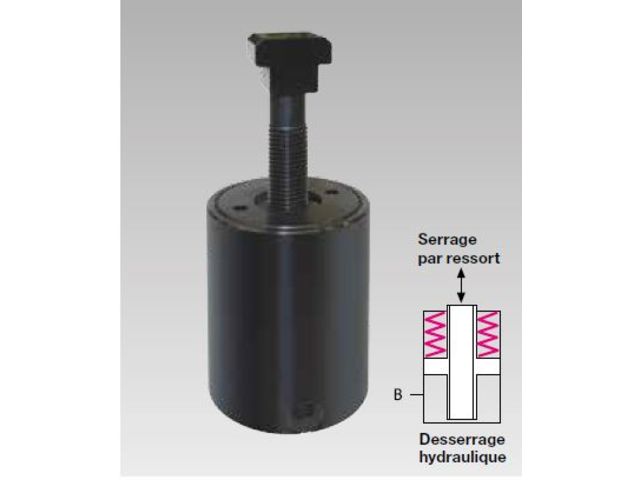

The element is manually placed on the clamping edge of the die. Unclamping by the application of hydraulic pressure to the piston and clamping by spring force. By means of the T-bolt the die is clamped against the clamping surface of the press ram or bed.

Advantages
● Hydraulic supply is only required for unclamping, i.e. for a short time
● Ideal force transmission
● Convenient and compact design with gripping surface
● No interfering edges when inserting the dies
● Easy to retrofit
● Easy installation

Download the complete technical features
