HV Mechanical Booster Pumps : HV8000IND HF bareshaft

Vacuum pump

Vote

Ask for a quote

Presentation

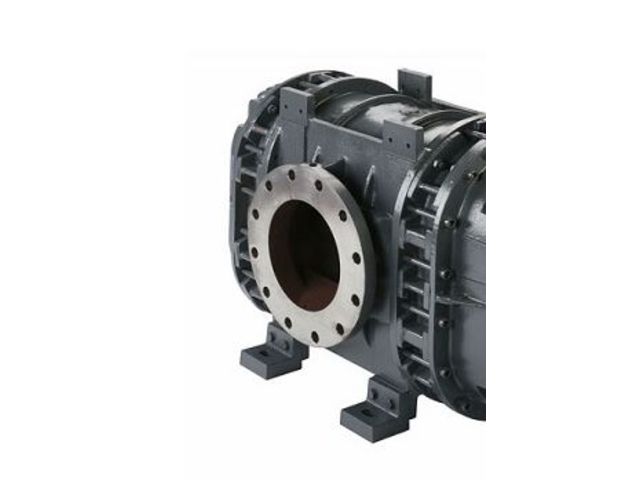

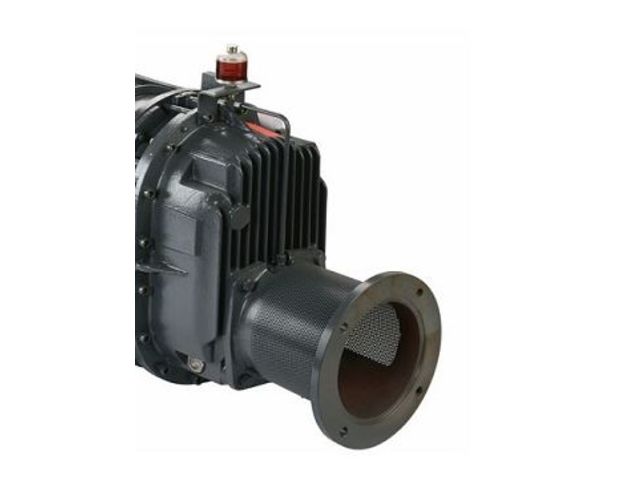

Overview The Edwards HV8000 high vacuum mechanical booster has been developed to provide
high reliability operation in aggressive environments. With a nominal pumping speed of 7200 m3h-1 (4241 ft3 min-1) at 50Hz, it is ideal for large industrial and chemical applications

Performance
· Stable process for consistent output - suitable for continuous operation over wide pressure ranges on heavy duty large scale applications

Reliability
· No unplanned downtime - high performance water cooled mechanical shaft seal, large diameter shaft and large helical gears

Adaptability
· Easy integration and safe - optional water cooled exhaust gas after cooler, shaft seal safety purge, temperature monitoring and VFD available

Flexibility
· Configured to your needs - can be supplied with standard motor or without motor to allow a local motor to be fitted. Horizontal or vertical flow to suit application and system design

Technical features

Displacement (swept volume) (50Hz) : 7200 m3h-1 / 4241 ft3min-1 Displacement (swept volume) (60Hz) : 8640 m3h-1 / 5089 ft3min-1 Max rotation speed (50Hz) : 3000 rpm Max rotation speed (60Hz) : 3600 rpm Max pressure differential (50Hz) : 190 mbar / 143 Torr Max pressure differential (60Hz) : 120 mbar / 90 Torr
