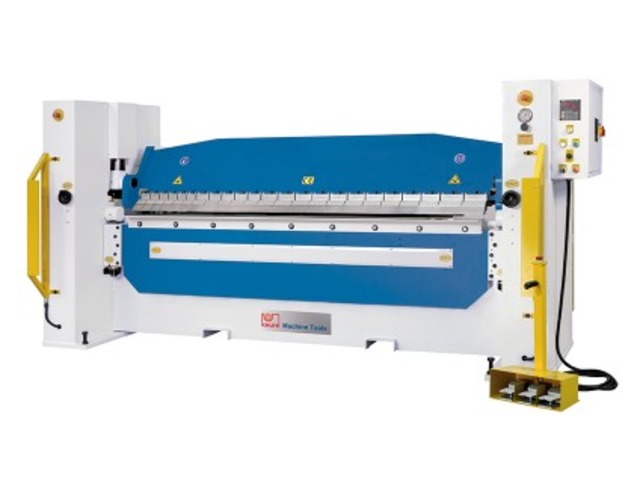

Hydraulic Folding Machines - HBM 2045

Sheet metal bending brake

“ Hydraulic Folding Machines for high angular accuracy in plate thicknesses up to 4.5 mm. ”

Ask for a quote

Presentation

• Rigid machine frame and powerful hydraulics ensure superior production quality, accuracy and reliability
• Design and equipment allow high machining speed with short tooling time and minimum down time
• Powerful drives feature with up to 7.5 kW, low-maintenance hydraulics
• Hydraulic upper die adjustment with clamping pressure control and display at the control panel
• Fine adjustment of the clamping gap to avoid damages to the workpiece surface
• Lower beam with manual adjustment and crowning
• Manually adjustable rear stop (600 mm), and angular positioning control M15S with LED-Display are standard equipment
• Bending angles up to 135°
• Segmented upper die with segment divisions of 76 mm (7 each), 102 mm (3 each), 127 mm (7 each) and 152 mm (2 each)
• Flexible operation with mobile triple foot switch
