KNUTH

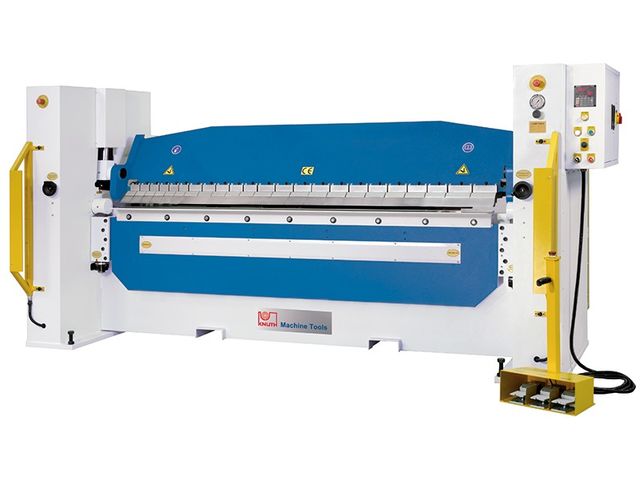

Hydraulic Folding Machines - HBM 2545

Sheet metal bending brake

“ Hydraulic Folding Machines for high angular accuracy in plate thicknesses up to 4.5 mm. ”
Ask for a quote Receive Documentation Contact the supplier

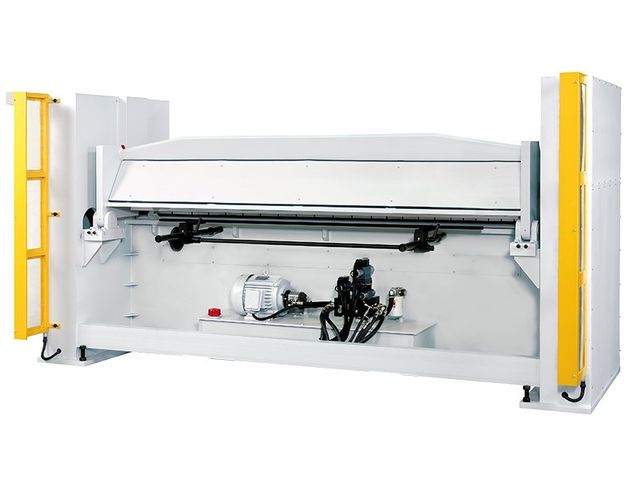

  • Rigid machine frame and powerful hydraulics ensure superior production quality, accuracy and reliability
  • Design and equipment allow high machining speed with short tooling time and minimum down time

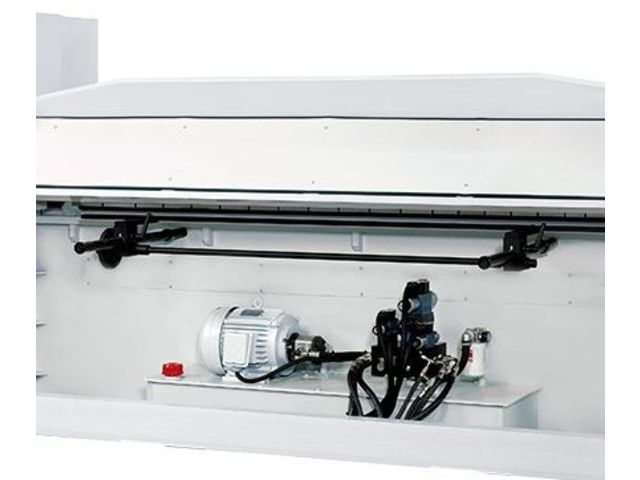

  • Powerful drives feature with up to 7.5 kW, low-maintenance hydraulics
  • Hydraulic upper die adjustment with clamping pressure control and display at the control panel
  • Fine adjustment of the clamping gap to avoid damages to the workpiece surface
  • Lower beam with manual adjustment and crowning

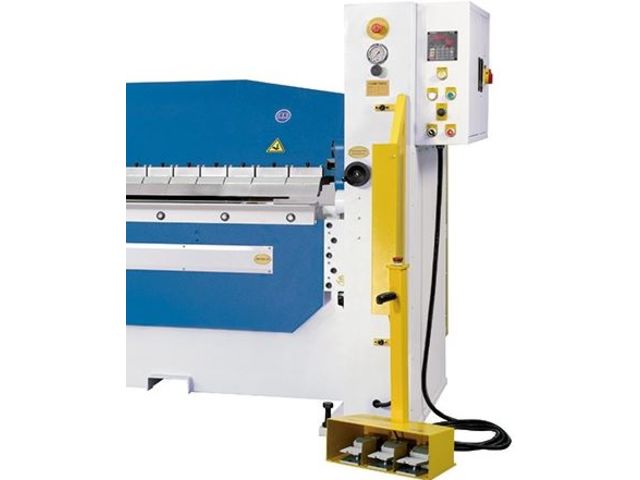

  • Manually adjustable rear stop (600 mm), and angular positioning control M15S with LED-Display are standard equipment
  • Bending angles up to 135°
  • Segmented upper die with segment divisions of 76 mm (7 each), 102 mm (3 each), 127 mm (7 each) and 152 mm (2 each)
  • Flexible operation with mobile triple foot switch.
Standard equipement :  position controller M15S, manual rear stop, segmented upper die 76 - 152 mm, mobile foot switch, operating tools and operator manual.
