PRO-DIS Machines-outils

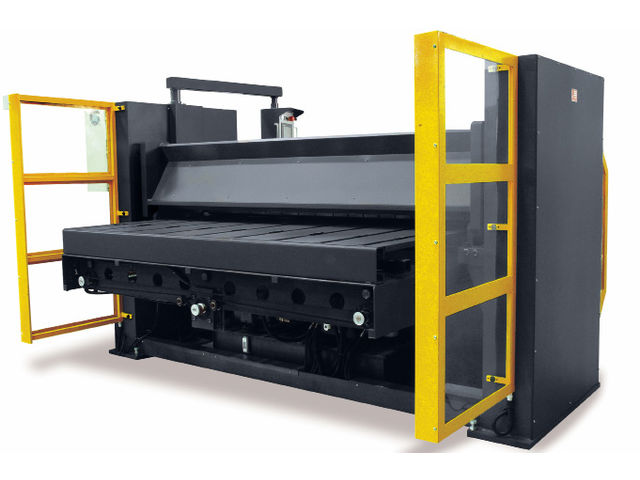

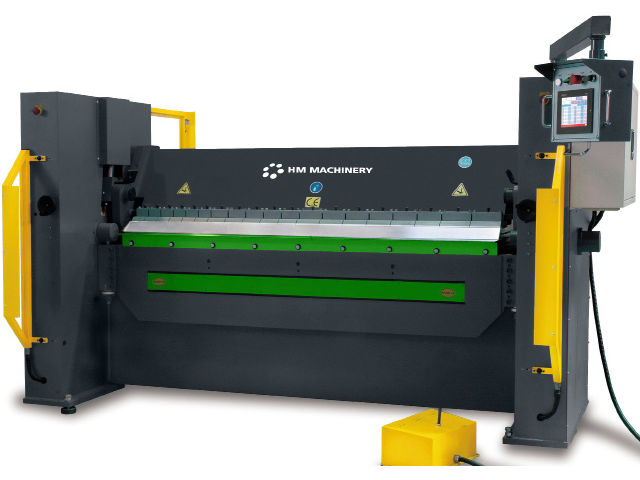

Hydraulic plate bending machine with apron and digital control : HBM - HM Machinery

Sheet metal bending brake

Ask for a quote Receive Documentation Contact the supplier

HM Machinery's 2-Axis Digital HBM Hydraulic HM Hydraulic Sheet Metal Folders have an increased rigidity design and offer a range of exceptional features for maximum bending flexibility.

When bending large materials, bending accuracy is essential and HM Machinery HBM Hydraulic Sheet Metal Folders maintain their precision over the full width of the bend.
With the complexity of the Dibond panel, consistent quality and accuracy are essential to ensure the connectivity of each panel.

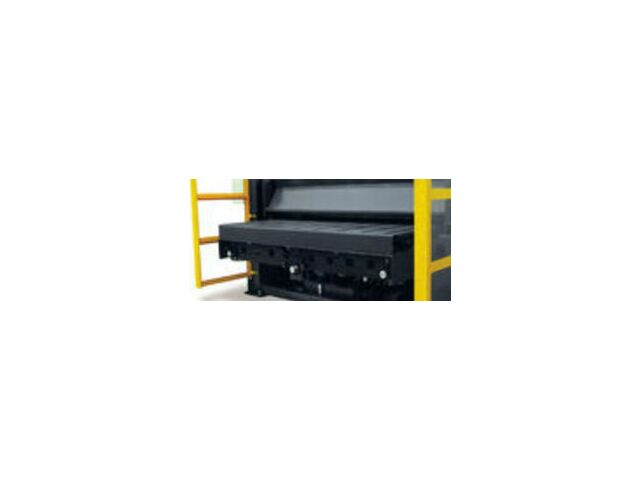

The lower deck is hydraulically driven by pinions and rack for better control and greater bend accuracy compared to a normal hydraulic transmission system.
HBM Hydraulic Sheet Metal Folders provide hydraulic pressure adjustment based on material thickness - so that damage to the material surface is always avoided. The thickness of the material is easily adjusted using a vernier steering wheel.

Specifications :

• Mini reverse folding of 25 mm.
• High precision over the entire width of the sheet.
•  Increased rigidity design.
• Hydraulic rack and pinion drive for better control and greater bending accuracy compared to the normal hydraulic drive system.
• Easy adjustment of the thickness of the material / simple adjustment of the thickness.
• Adjustable hydraulic pressure to match the thickness of the material, so that surface damage is always avoided.
• Quick and precise bending of the dibond panel with great precision.
• CNC NC 2-axis SCHNEIDER with programmable bending angle.
• Motorized backstop of 800 mm with possibility of 1000 steps, it means for example that it is possible to make 50 programs with 20 steps or 100 programs with 10 steps. The backgauge and the drive belt offer fast movement and high precision positioning up to 800 mm (1250 mm optional).

The range of Schneider 2-axis HBM CNC hydraulic plate bending machines consists of 22 different models.
