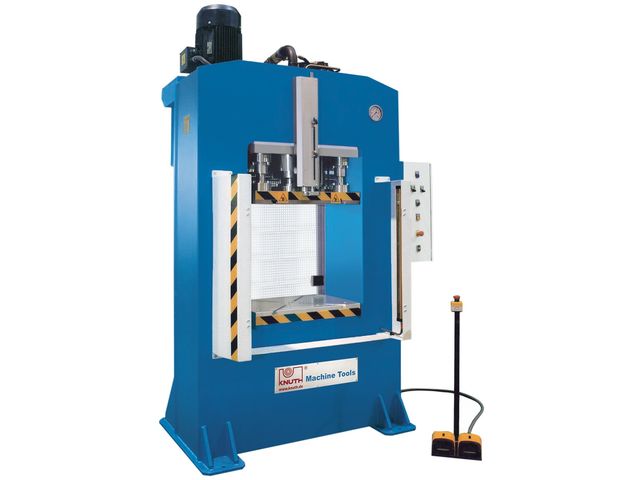

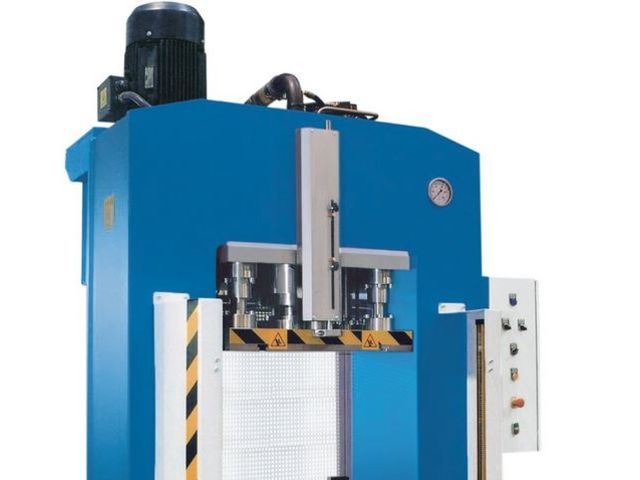

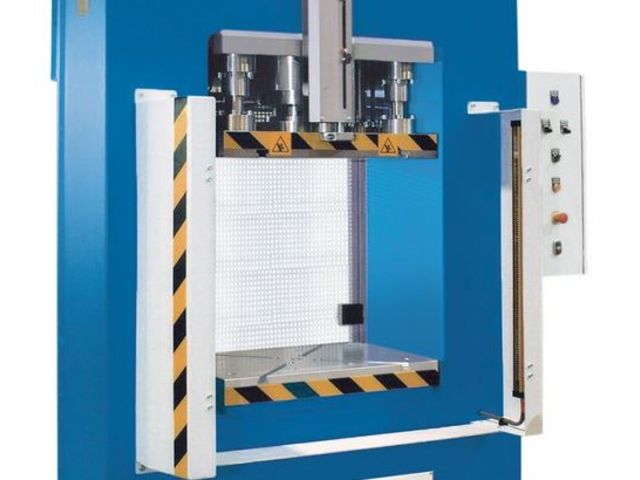

Hydraulic Production Press - KPP 80

Hydraulic brake press

Vote

“ Stamping, Punching and Deep-Drawing in Series ”

Ask for a quote

Presentation

Quality and Reliability - Made in Europe

• The robust, rigid machine frame is of superior workmanship.
• Two T-slots in the table and two T-slots in the ram plate accommodate large workpieces and tools.
• Stroke and speed of the dual-action cylinder can be set directly at the control panel.
• Adjustable pressure control for application-specific power adjustment.
• Idle run and work speed plus manual or semi-automatic operation can be preselected.
• Light barriers, safety foot switch plus side and rear safety guards ensure operator safety and uninterrupted production.
• This modern machine design offers interesting options, like increased speed or requirement-specific geometry adaptation.

Standard equipment : Ram plate, Arbeitsplatte, foot pedal, light barrier, operator manual.

Technical features

Pressure force : 80 t Operating pressure (max.) : 320 bar Piston travel : 250 mm Stroke speed : 5,7 mm/s Return speed : 40 mm/s Guideway diameters : 50 mm Table dimensions : 700x500 mm Ram-plate size : 650x450 mm Work space : 400x800 mm Working height : 900 mm
