Impeller valve type FS-M EBRO ARMATUREN Gebr. Bröer GmbH

Impeller valve type FS-M

Regulation valve

Vote

Ask for a quote Receive Documentation Contact the supplier

Series production is our business - the development of customised solutions for special applications is our passion. For more than 40 years we have been developing tailor-made solutions in close collaboration with our customers, for challenging fields of application that simply require more than a standardised valve product. This has resulted in countless variations. Many of them have been developed to series production, others are manufactured in small batches for select applications. We can only show the tip of the iceberg here. Challenge us!

Nominal diameter: DN 150 - DN 500 Face-to-face: EBRO works standard Flange connection: EN 1092 PN 6/10/16, ASME Class 150 Marking: EN 19 Temperature range: -20 °C to +100°C, optional up to +250°C Max. operating pressure: max. 6 bar Body: Light metal full flange with inserted ring(stainless steel) Impeller wheel: Stainless steel, optional mirror polished Actuator: Electric actuator 230V/400V 50Hz/60Hz, 30 min-1 to 100 min-1
Download the complete technical features

Drop your rating on Impeller valve type FS-M

Your answer to the rating from -

OTHER PRODUCTS REGULATION VALVE FROM EBRO ARMATUREN Gebr. Bröer GmbH

Switch Box Unit SBU

Switch Box Unit SBU

 Ask for a quote
Shut-off and control valve type T 211-A

Shut-off and control valve type T 211-A

 Ask for a quote

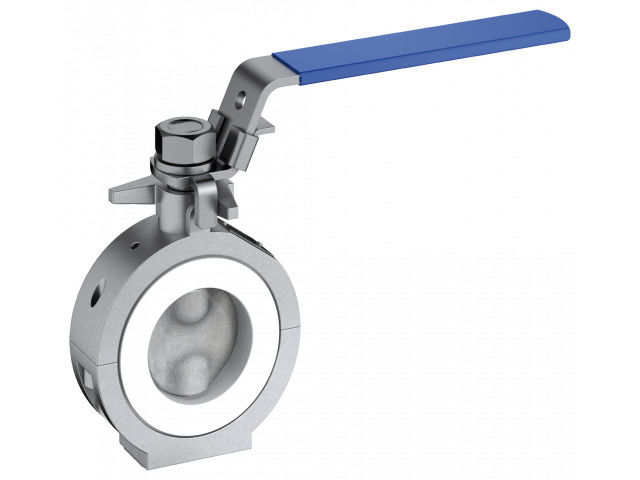

Container valve BE 50/BE 80

Container valve BE 50/BE 80

 Ask for a quote
Shut-off and control valve type Z 414-A

Shut-off and control valve type Z 414-A

 Ask for a quote

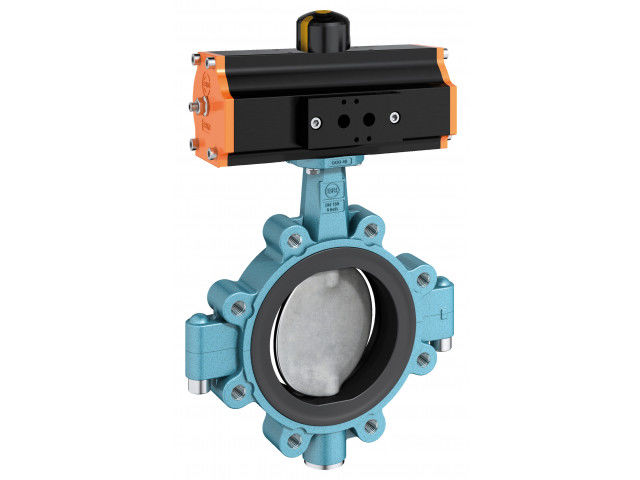

Shut-off and control valve type Z 614-A

Shut-off and control valve type Z 614-A

 Ask for a quote
Shut-off and control valve type F 012-K1/WN

Shut-off and control valve type F 012-K1/WN

 Ask for a quote

Check out all the products from regulation valve from EBRO ARMATUREN GEBR. BRÖER GMBH

INTERNET USERS ALSO CONSULTED ON THE CATEGORY REGULATION VALVE

High temperature sliding gate valve type 8024

High temperature sliding gate valve type 8024

 Ask for a quote
High temperature sliding gate valve type 8053

High temperature sliding gate valve type 8053

 Ask for a quote
Ball sector motor valve explosion-proof type 4037

Ball sector motor valve explosion-proof type 4037

 Ask for a quote
Angle seat control valve type 7020

Angle seat control valve type 7020

 Ask for a quote

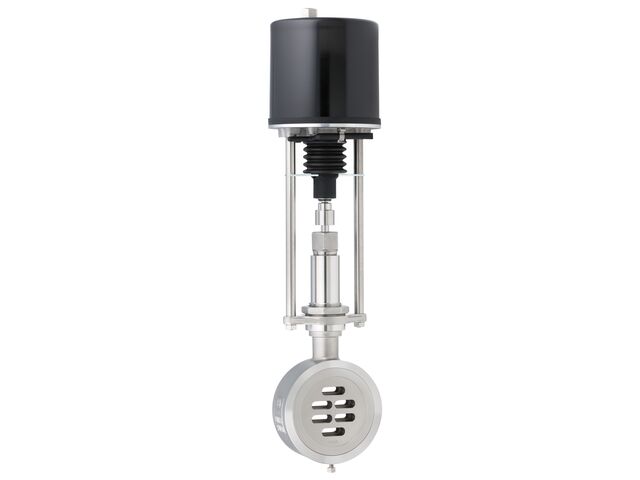

Sliding gate motor valve type 8030

Sliding gate motor valve type 8030

 Ask for a quote

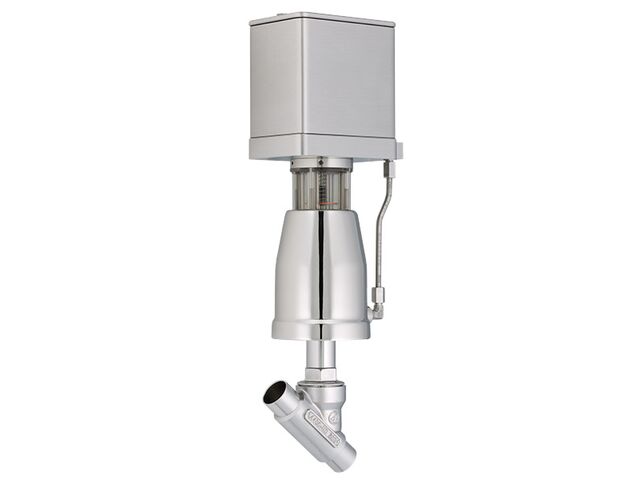

Hygienic angle seat control valve | Type 7025
