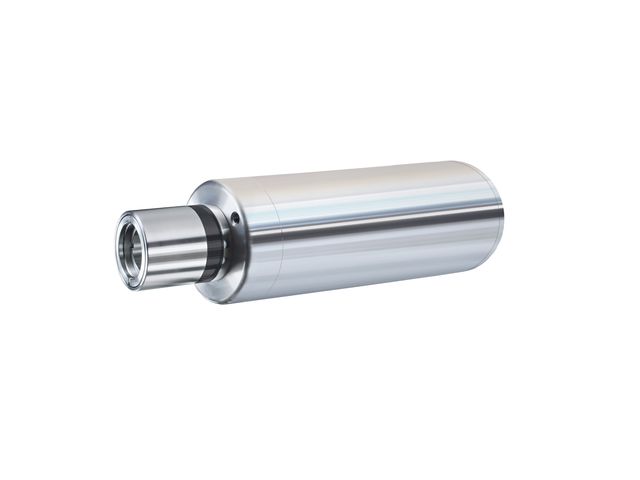

This short wavelength infrared thermometer in an IP65 stainless case is dedicated to high-temperature industrial processes such as metallurgy.
It covers temperatures between 250 and 3000oC with an adjustable response time of 1 ms.

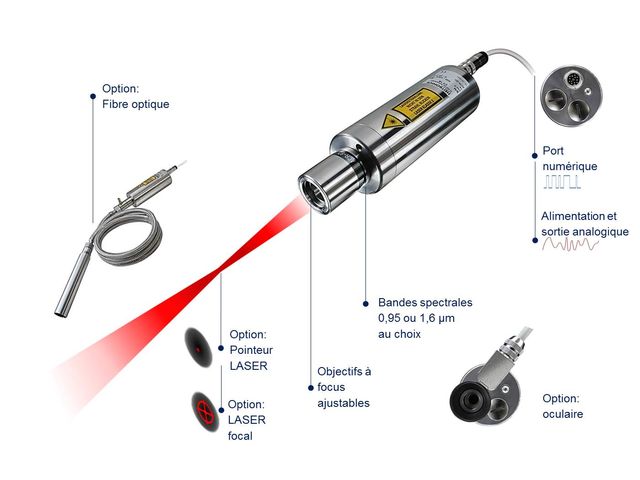

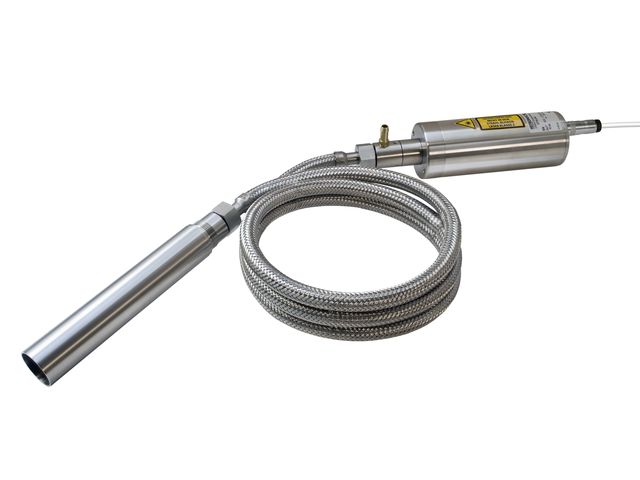

Equipped with an adjustable lens, it can also be equipped with an optical fiber for critical situations.
-
Very high temperature stability by pulsed radiation method
-
Very high resolution 0.01 degrees Celsius
-
Fast response times from 1 ms also at low temperatures
-
Large temperature range from 200 to 3000 degrees Celsius (download)
Features
-
Focus on application
-
Up to 175 °C ambient temperature by using water cooling
-
Fast target measurement
-
Pilot laser marks the center of the field-of-view
-
Very high accuracy as 0.25 % (min. 2 °C)
-
User interface software for complete programming and measurement
-
Fields-of-view up to 100:1 at low temperatures (> 200 °C) allow high optical resolutions
Application
Temperature Measurement of:
-
Metals
-
Metal oxid
-
Semiconductors
-
Glass
-
Graphite
-
Silicium
-
...
Prozess Temperatures in:
-
Hardening
-
Soldering
-
Forging
-
Induction heating
-
Epitaxy
-
Casting
-
Annealing
Routines
-
Permanent self-monitoring routines ensure a reliable operation.
-
The integrated calibration routine allows a fast and reliable control of the devices at the face.
Data
-
Four programmable analog outputs (0/4 - 20 mA, 0 - 10 V, 0 - 1 V)
-
Seral interface for programming and data transfer
-
etc.
Demande de contact pour un thermomètre industriel de 200 à 3000°C
Pyromètre sans contact pour four à induction où la température est d'environ 1700 degrés Celsius.
