Innovative Track System | 1-Trak HEPCOMOTION

Innovative Track System | 1-Trak

Roller linear guidance

Vote

“ linear application, carriage, curves ”
Ask for a quote Receive Documentation Contact the supplier

1-Trak is a highly innovative track system product, which re-writes what is possible with linear and rotary motion. Advanced materials and technologies are used to produce systems to almost any two dimensional shape from one piece of material.

1-Trak will save on assembly time and enable “curvi” linear applications previously seen as expensive to be achieved in an easy simple way, with one drive.

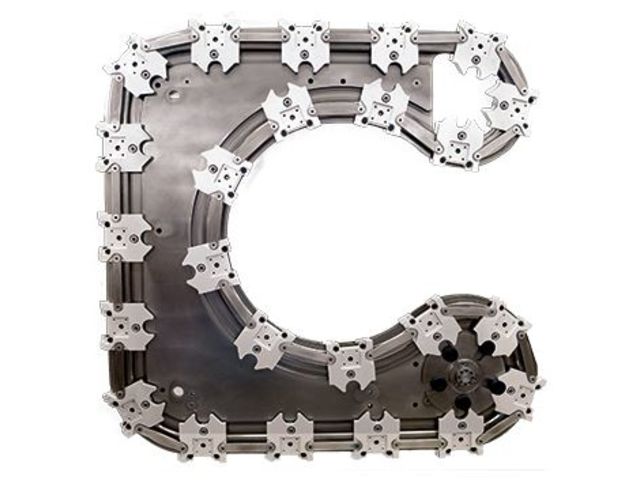

• Any conceivable 2D shape can be achieved; multi dimensional curves and free-form curves are possible.
• Track systems can be designed to your exact requirements.

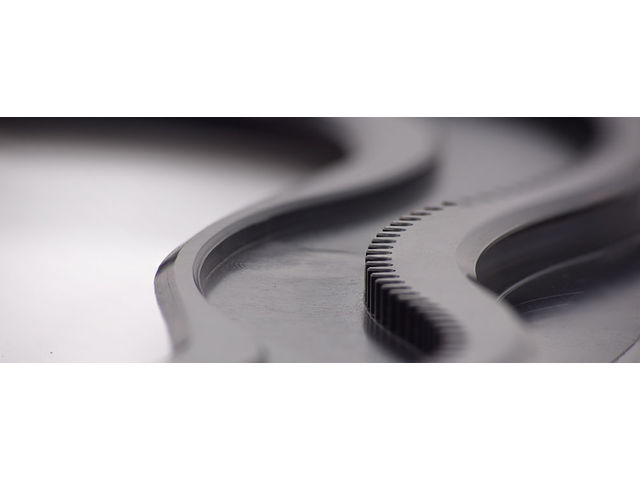

• Carriages can be gear driven around the track, negating the need for complicated drive systems.
• System is made from one piece of material with no individual linear tracks and segments to assemble.
• Where space is important 1- Trak enables tight track return curves to be achieved.
• 1-Trak can incorporate a base for a machine, complete with drive and all fixing holes.

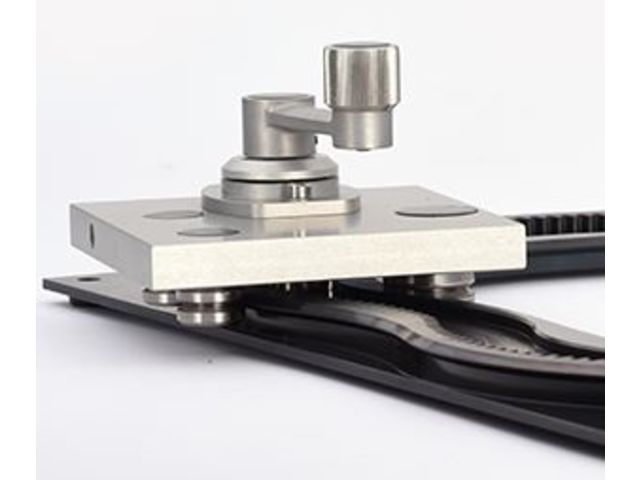

• 3 bearing carriage technology allows play free operation throughout linear and rotary travel.
• Load capacities are only limited by the maximum size of bearing at 150mm.

Load Range : 0 – 28,000N Speeds : 0 – 8m/s
Download the complete technical features
