Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3 Expansion Industrial PC | Nuvo-8034

Nuvo-8034 -25°C ~ 60°C with 100% CPU/ GPU loading

Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3 Expansion Industrial PC | Nuvo-8034 Neousys Technology Inc.

Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3 Expansion Industrial PC | Nuvo-8034

Shoebox PC

Vote

Ask for a quote

Presentation

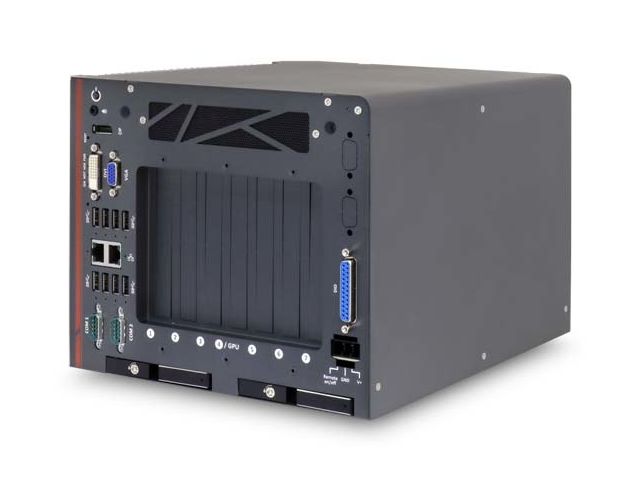

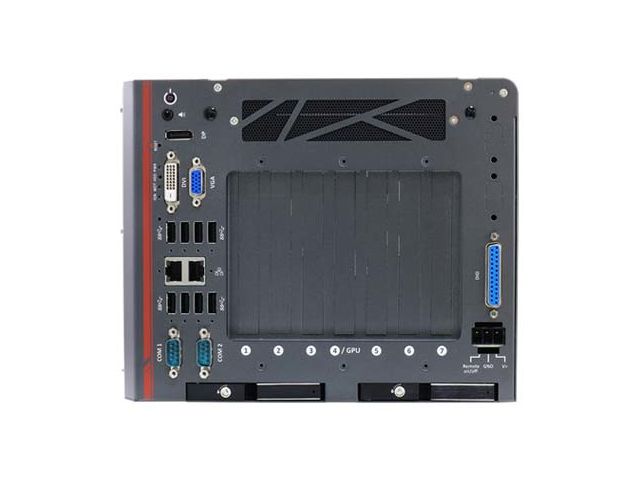

Nuvo-8034 is a new-breed of box-PC offering 7 expansion slots in a comparatively compact size. Of its four PCIe slots, two are x16 slots (@Gen3, 8-lanes) connected directly to the CPU PEG port to deliver up to 8 GB/s bandwidth for GPU and high speed I/O cards, and two are x8 slots (@Gen3, 4-lanes) from PCH for general-purpose usage. The system is capable of accmmodating one 180W NVIDIA® GPU for modern AI applications. Additionally, there are 3 PCI slots to support legacy PCI cards for general industrial usage.

Nuvo-8034 supports Intel® 9th/ 8th-Gen Core™ i processor with workstation-grade Intel® C246 chipset to offer superior computing power. Utilizing Neousys' distinctive power design, Nuvo-8034 can handle heavy power consumption of multiple PCIe and PCI expansion cards with 8~48V widerange DC input. The system features two hot-swappable trays that support 2.5" SATA SSD/ HDD on the front panel with RAID 0/ 1 support, making it easier to access when placed inside a cabinet. External I/O wise, Nuvo-8034 offers 8-channel isolated DI and 8-channel isolated DO for industrial automation, eight USB 3.1 Gen1/ Gen2 ports with screw-lock for USB3 cameras.

With an assortment of I/O ports and flexible 7-slot PCIe/ PCI expandability, Nuvo-8034 is an all-around rugged solution that can satisfy various industrial applications such as machine vision, industrial automation and data analytics.

Technical features

Supports Intel® 9th/ 8th-Gen Core™ i7/ i5 /i3 LGA1151 CPU Two x16 PCIe, two x8 PCIe, and three PCI slots Supports single NVIDIA® GPU card with up to 180W TDP 8-ch isolated DI and 8-ch isolated DO 2x GbE ports with screw-lock 4x USB 3.1 Gen2 and 4x USB 3.1 Gen1 ports with screw-lock Two front-accessible, hot-swappable 2.5 M.2 2280 M key NVMe (Gen3 x4) for fast storage access

Download the complete technical features
