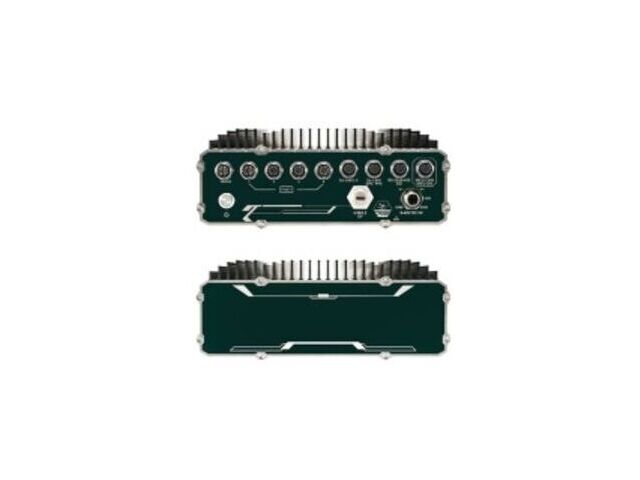

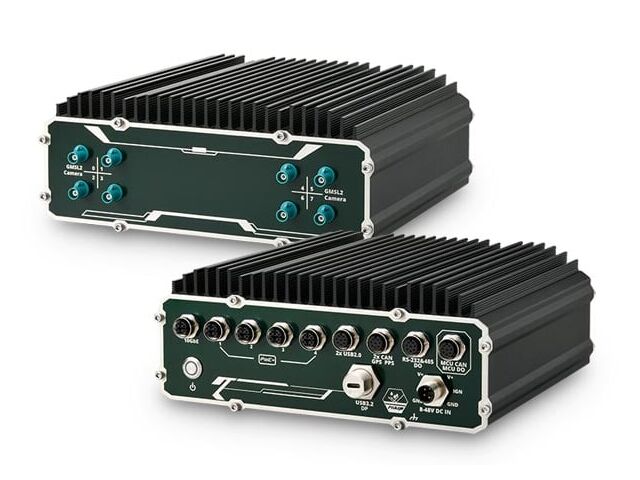

IP66 Waterproof AGX Orin Computer | NRU-230V-AWP/ NRU-240S-AWP

IP66 Waterproof AGX Orin Computer | NRU-230V-AWP/ NRU-240S-AWP - Neousys Technology Inc.

IP66 Waterproof AGX Orin Computer | NRU-230V-AWP/ NRU-240S-AWP - Fanless PC

IP66 Waterproof AGX Orin Computer | NRU-230V-AWP/ NRU-240S-AWP - produit présenté par Neousys Technology Inc.

IP66 Waterproof AGX Orin Computer | NRU-230V-AWP/ NRU-240S-AWP

Fanless PC

“ ‧ Powered by NVIDIA® Jetson AGX Orin™ SoM bundled with JetPack 5.1.1 Powered by NVIDIA® Jetson AGX Orin™ Industrial bundled with JetPack 6.0 ‧ Rugged -25°C to 70°C fanless operation (JAO32/ JAO64) - No throttling at 55°C with JAO64 MAXN Mode Rugged -40°C to 75°C fanless operation (JAOi) - No throttling at 50°C with JAOi MAXN Mode ‧ IP66 waterproof and dustproof ‧ Support 8x GMSL2 automotive cameras via FAKRA Z connectors (NRU-230V-AWP) ‧ 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors ‧ 2x isolated CAN 2.0, 1x RS232, and 1x isolated RS485 via M12 A-coded connectors ‧ 1x system monitoring port by automotive-grade MCU ‧ 8V to 48V wide-range DC input with built-in ignition power control ”

Ask for a quote

Presentation

Powered by NVIDIA® Jetson AGX Orin, NRU-230V-AWP offers up to 275 sparse TOPS (INT8) AI inference and can transcode up to twenty-two 1080P video streams simultaneously. To meet versatile camera requirements for vision-based AI applications, NRU-230V-AWP not only offers 4x waterproof M12 PoE+ GbE ports for industrial GigE cameras or IP cameras, but it also provides 8x waterproof GMSL2 FAKRA ports for automotive cameras or industrial stereo cameras. Additionally, the waterproof Type-C connector provides 4K DisplayPort output for ADAS applications involving real-time surround-view awareness. A waterproof 10GbE port is also provided for high-speed data communication.

For more details, please click here.
