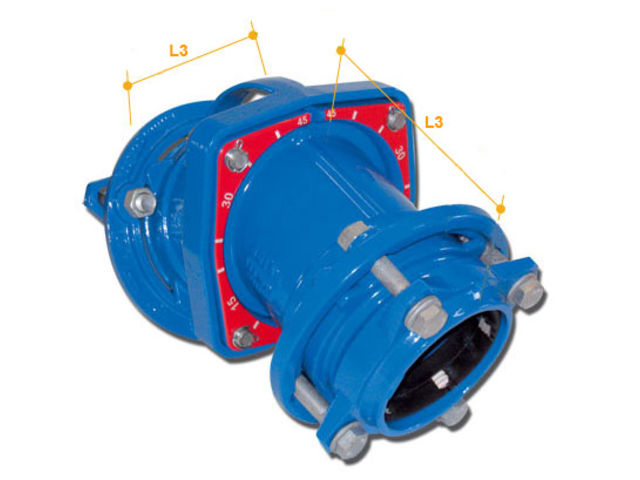

KAMELEO bend anchored (8) Variable angle bend with self-anchored mechanical junctions

KAMELEO range : an easier way to create bends DN 80 - 100 - 150 KAMELEO bend anchored.

KAMELEO variable angle fitting n° (8)

Variable angle (0 to 45°) bend with self-anchored mechanical junctions

KAMELEO components for anchored bend : two kits for self-anchored mechanical junctions.

KAMELEO

variable angle fitting
... with a gift for transformation ...

KAMELEO is a variable angle fitting designed to connect water supply pipelines.

KAMELEO consists of a main component which can take a complete range of accessories to metamorphose as you wish into :

• a fully sliding collar,
• a bend with continuously variable angle from 0 à 45°,
• a flanged socket with continuously variable angle from 0 à 45°.
  ln this version, KAMELEO combines the functions of a flanged socket and a variable angle bend.

The ends of KAMELEO can be fitted with flanges, mechanical or automatic junctions, self-anchored or not, to adapt to all site situations.

KAMELEO is suitable for most networks :

• it is designed to withstand an allowable operating pressure (PFA) of 16 bar,
• its 250 microns thick epoxy coating and hot galvanised steel nuts and bolts guarantee excellent durability.

Compliance with standards and regulations

• The type tests carried out on KAMELEO comply with EN545
• The epoxy coating complies with EN 14901
• The components in contact with drinking water are in accordance with European regulations on potable water
