KBT 916 – Fire Testing System for Cables

Climate chambers

Vote

Ask for a quote

Presentation

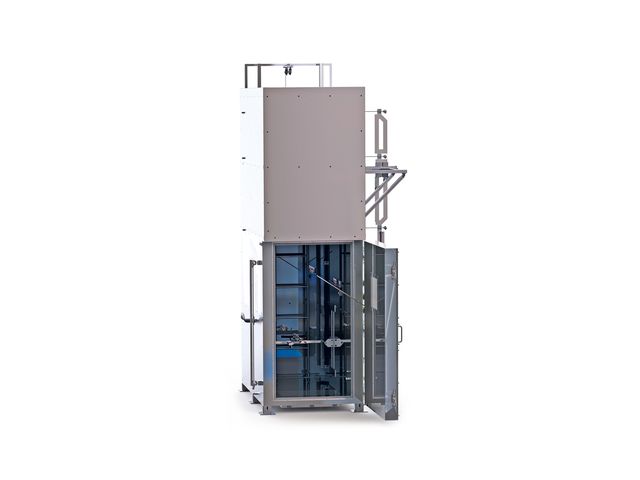

Fire Testing System for measuring the heat release and smoke production during flame spread tests on vertically mounted bunched cables and insulated wires, in accordance with EN 50399 and IEC 60332-3-10 (testing device)

The KBT 916 from NETZSCH TAURUS Instruments GmbH is easy to operate, offering innovative control and data acquisition options in an intuitive format with ample user guidance.

The high-resolution color touch display on the “KBT Control” cabinet allows for measuring and control with the integrated Single Board Computer, Windows operating system and KBT software. There is thus no longer any need for manual controls such as switches, controllers or buttons; the status of the
testing system is clearly displayed and the system prevents any critical operating errors. The storage, analysis and recording of all test data is handled entirely via the control unit. Well thought-out details along with the use of highquality materials guarantee the KBT 916 test system a long product life and a low degree of wear and tear.

Technical features

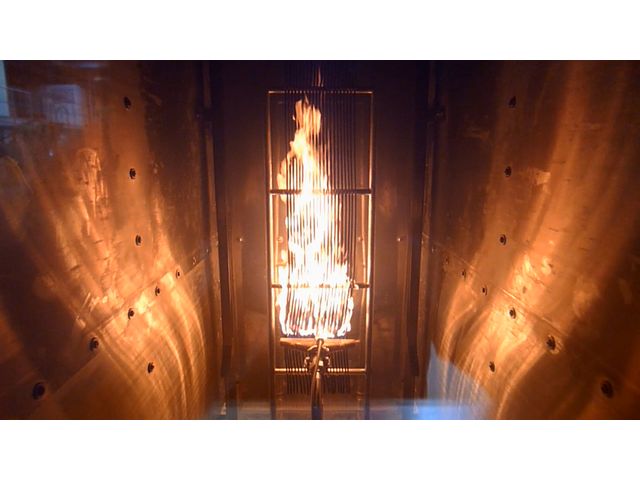

KBT test chamber with sample holder, hood, collector, measuring tube, gas installation, burner, air supply and sensors Cable winch with electric drive, ramp and option for easier transport of the sample holder Exhaust gas fan with flow control for constant exhaust gas flow Modules for data acquisition and control of all processes Extensive options and accessories for enhancing the exhaust system and for calibrating the KBT test unit Stainless steel extraction hood and collector for protection against aggressive gases Measuring duct section with bidirectional probe, NiCrNi thermocouples, light measurement system and gas sampling probe Ribbon propane burner with venturi mixer, piezoelectric igniter, flame detector, folding mechanism and stainless steel protective cover Single license for the KBT software 19“ PC rack, monitor, printer, PC (option)
