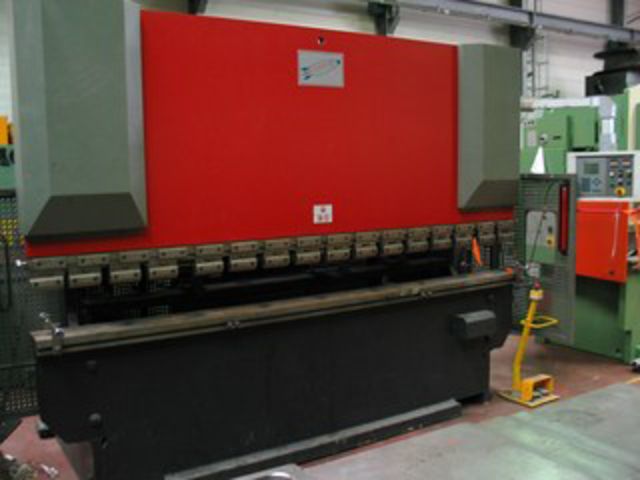

KORPLEG CNC Press Brake - Type: PHB 3130

Ask for a quote

Presentation

• Strength : 130 T.
• Maximum length : 3200 mm.
• Digital control : DELEM DA 41.
• Number of axes: 2.
• Distance between uprights : 2650 mm.
• Depth of the gooseneck : 320 mm.
• Backgauge capacity : 600 mm.
• Approach speed : 100 mm / s.
• Working speed : 7 mm / s.
• Ascent rate : 60 mm / s.
• Width of the table : 180 mm.
• Motor : 7.5 kw.
• Approximate weight : 8700 kg.
• Overall dimensions : 4050x1580x2485 mm.

Accessories

- Intermediate kind PROMECAM.
- Rear stop X and y-slide adjustment managed by the CN.
- Multi-vee matrix.
- Punches.
- Intangible barriers.
