Lateral Spring Plungers with spring steel sheet - EH 22160 HALDER FRANCE SAS

Lateral Spring Plungers with spring steel sheet - EH 22160

Assembly systems and components

Vote

Ask for a quote Receive Documentation Contact the supplier

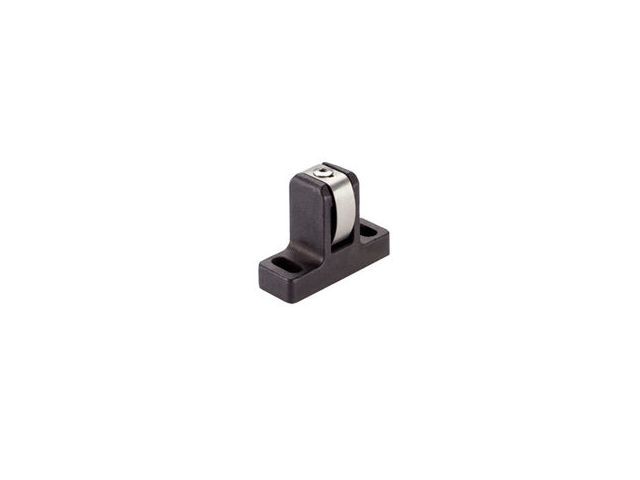

The lateral spring plunger with spring steel sheet guarantees a simple and secure positioning of workpieces or components at stops or fixture plates, e.g. in board mounting or before the clamping process in the jig and fixture construction.

The double-sided version allows for serial clamping.

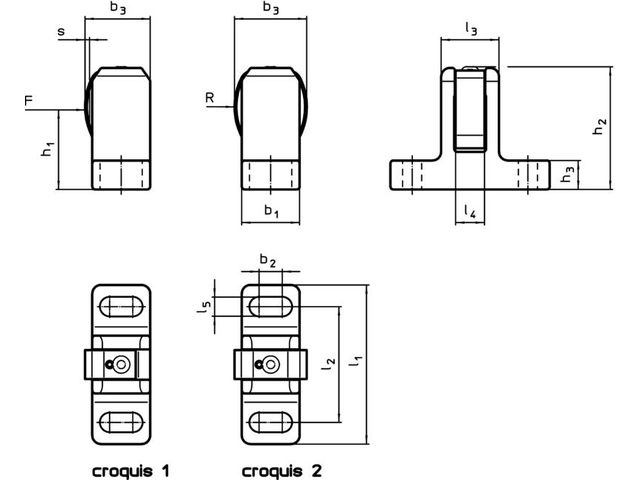

Below h1 is resulting a down hold effect.

Download the complete technical features
