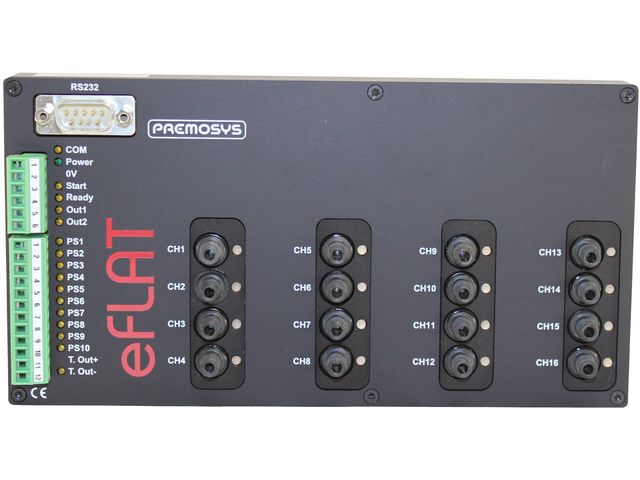

LED Analyzer eFLAT

Optics - Measurement - Electronics

This product is temporarily unavailable.
Think about consulting similar products.

“ - 4 to 16 channels - Sensibility 3,5 .... 10.000.000 Lux - Measure time approx 25ms per cycle - Test of blinking LED - Detectable wavelength 400-700nm - Output of measurement values in x, y, Y, CCT and dominant wavelength - Spectral resolution up to 1nm - up to 4 internal calibrations per measurement channel - up to 255 user calibrations per measurement channel - Calibration for illuminance available for user - Sychronized calibration of all channels - 8 automatic gain levels - Trigger output - Systems available for relative and absolute measurement - own calibration by customers is possible - Highest variety of products - over 1024 independent products and sets of parameters - Temperature compensation in the range from 20-55 degree Celsius - Win32 Low level DLL - Serial and digital interface on board - Power supply 12 to 27V DC, max. 0,3A (at 12V) ”

Ask for a quote

Presentation

The light analyser and test system eFlat permits a very fast parallel automatic testing both for color and intensity of LEDs, Displays, Dashboard Lightings, Traffic Signals and other kinds of luminous objects.

Here the entire spectrum of the visible light is covered from dark to the brightest LEDs. The LED color tester eFLAT permits a very precise color recognition with an excellent repetition accuracy, simple operation and fast, fully automatic color evaluation, which is used in many applications of the electronics manufacturing like in In-Circuit tests as well as in function tests.

Latest requests

Demande de documentation:] PREMOSYS GMBH

Would you give us the price for 4 channel eFLAT LED analyzer with 1 Fiber optic light guide and 1 Diffuser. Please add also the delivery to Bulgaria.
