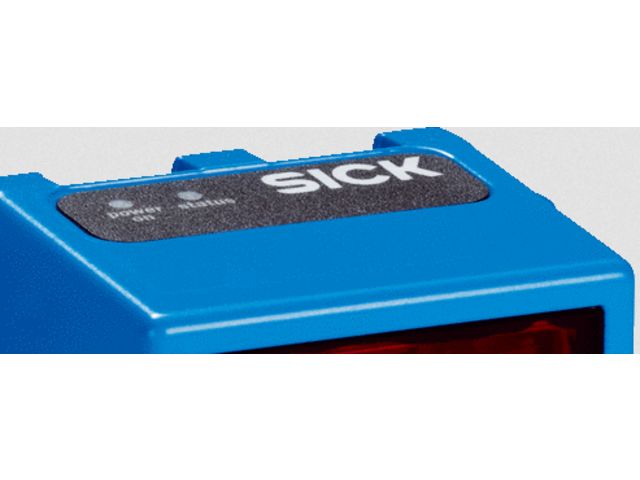

Linear measurement sensors - OLM100 Hi

Linear position sensors

Vote

Ask for a quote

Presentation

The OLM100 Hi is a high performance variant of the well-known OLM100. The strengths of the OLM100 Hi include very high travel speeds, extremely precise repeatability, and an SSI interface for direct feedback into drive.

At a glance

Highly accurate camera-based bar code positioning system
Traversing speeds of up to 10 m/s can be achieved
Wear and maintenance-free thanks to camera technology
Adjustable resolution as low as 0.1 mm
Precise positioning up to 10,000 m
Compact, extremely rugged magnesium housing
Wide range of interfaces: SSI, RS-422, and CANopen
Wide operating temperature range from –30 °C to +60 °C

Technical features

High travel speed linked to precise positioning increases system efficiency and improves throughput Camera-based system with no moving parts increases the sensor's service life, thus reducing lifecycle costs considerably Very small housing dimensions combined with the latest industrial interfaces ensure integration into almost any system design, even where space is limited Serial interfaces (RS-422, SSI, and CANopen) offer highest flexibility and easiest system integration, hence saving costs for interface converters and protocol adaption The large temperature range from –30°C to +60°C offers reliable use in many applications
