LinearBeam : mechanical linear actuator for transfer of loads

Linear actuator

Vote

Ask for a quote

Presentation

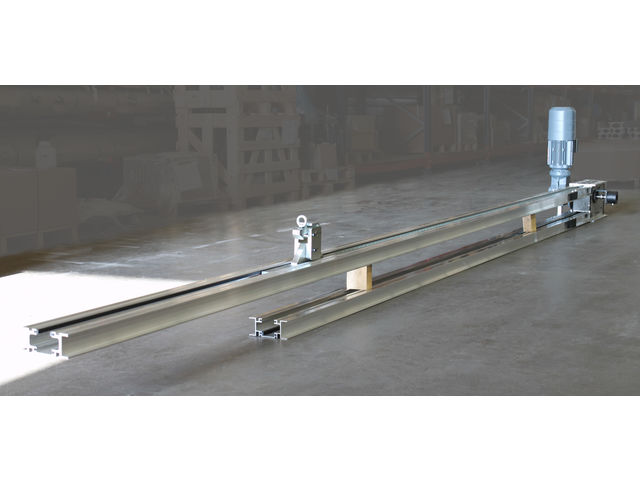

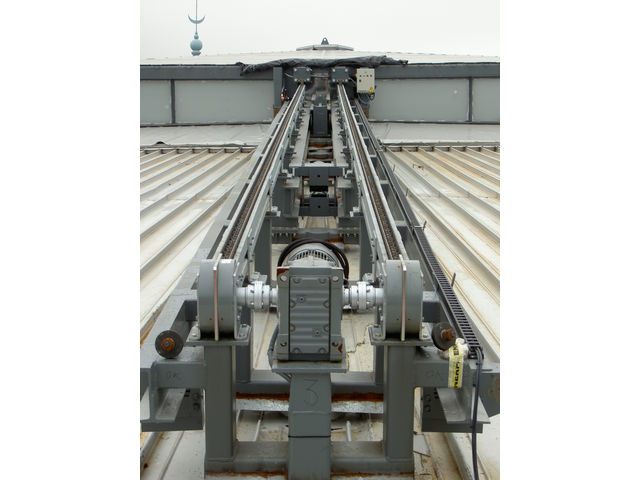

The LinearBeam mechanical linear actuator is a concept that uses SERAPID rigid chain technology. It is similar to a single part beam, composed of a drive casing, an active chain guide in the upper part, a magazine chain guide in the lower part, and a rigid chain. The compact and powerful LinearBeam linear actuator is designed to move heavy loads over long strokes, it is easy to build into your machines and civil engineering.

The base system can be completed by a wide range of options and accessories in order offer a product that fully meets your needs.

A wide choice of options and accessories
Varied motorisation: electric, pneumatic or hydraulic

Thanks to Rigid Chain Technology (RCT), SERAPID makes eco-friendly systems that replaces hydraulics with a compact, simple and reliable technology.

For further information : info-fr@serapid.com

Technical features

Horizontal, vertical or oblique transfer movement Stroke: 1 metre minimum, with no maximum limit Load: from 1 kN to more than 160 kN ATEX category II 2GD c T4 certification A simple and robust design guaranteeing a long service life and use in difficult environments where other technology cannot be used (Clean room, dust, temperature, humidity, radiation, chemical aggression, etc.) Highly compact single block beam concept offering easy installation in existing environments, machines or buildings. Standard speed up to 300 mm/sec. Beyond this value, please contact us. Very light servicing and maintenance Accuracy and repeatability of positioning to the nearest millimetre, even at maximum speed (depending on the stroke and how it is managed) High frequency with oil bath adaptation

Download the complete technical features
