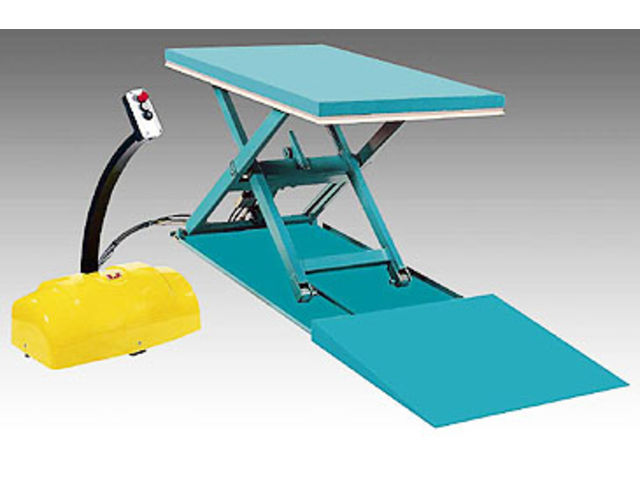

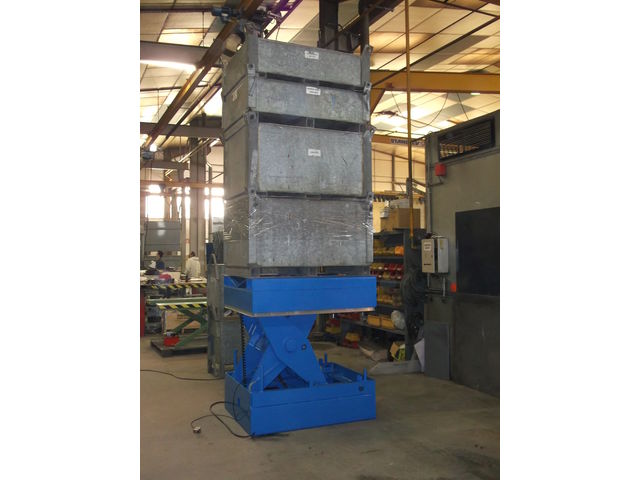

Low Profile Lift Table

Low profile lift tables, due to their low closed height, do not require a floor pit, offering flexibility of location and keeping installation costs to a minimum.

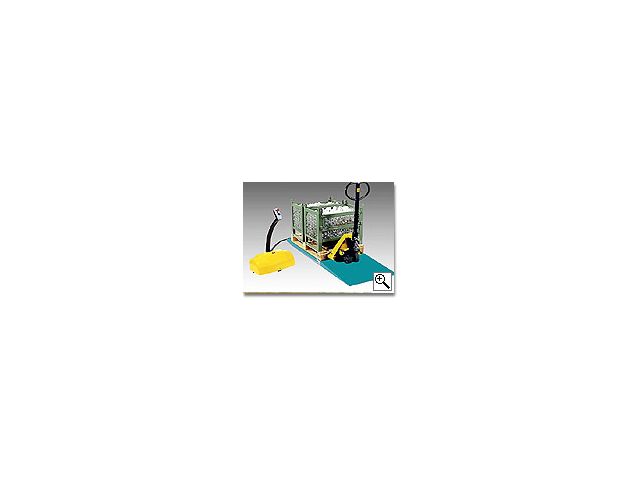

Two versions are available, either full top platform or U shaped, which is particularly useful when loading a pallet safely onto the table using a hand pallet or pedestrian truck without the need for an access ramp.

- max. 20 cycles per hour, one shift a day (for more intense operations please consult with us)
- single acting hydraulic cylinders with drainage
- upper travel limit switch
- self lubricating bearings on pivot points
- remote hydraulic power pack  provided with relief valve against overloading and compensated flow valve for controlled lowering speed; push button control box fixed on a stand for easier operation
- electrical equipment controlled by electronic system, with low voltage transformer and thermal overload protection

Type A8.U  U shaped top platform for evenly distributed load

Type A8.C full top platform for evenly distributed load
