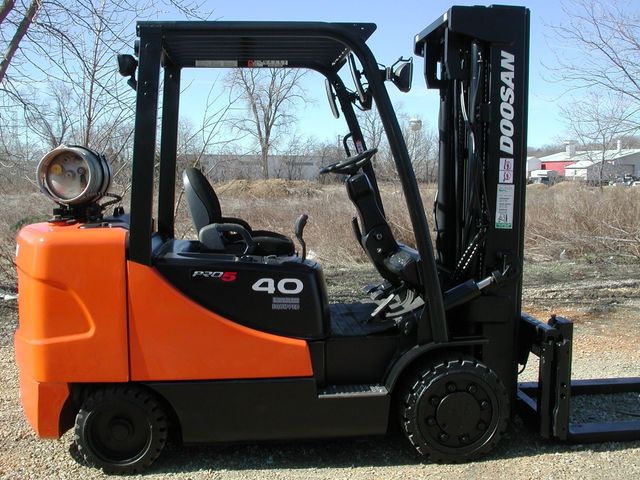

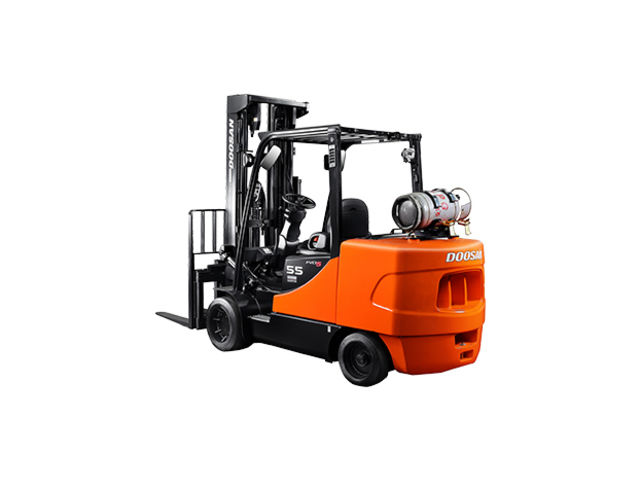

LPG forklift - Pro 5 series - 3.5 to 4 t

Wider mast window, repositioned hydraulic hoses and flat bar style overhead guard optimizes operator sight lines forward, up and to the load.

The integrated instrument panel provides critical information instantly. Fuel, oil pressure, temperature and hour usage are clearly indicated, whilst additional status information on the mast interlock feature, transmission status, seat belt, and brake oil level keeps the operator fully aware of all vehicle performance systems.

Provides excellent storage for paperwork, refreshments, small tools, etc.

Returns the mast to the upright vertical position at the push of a button.

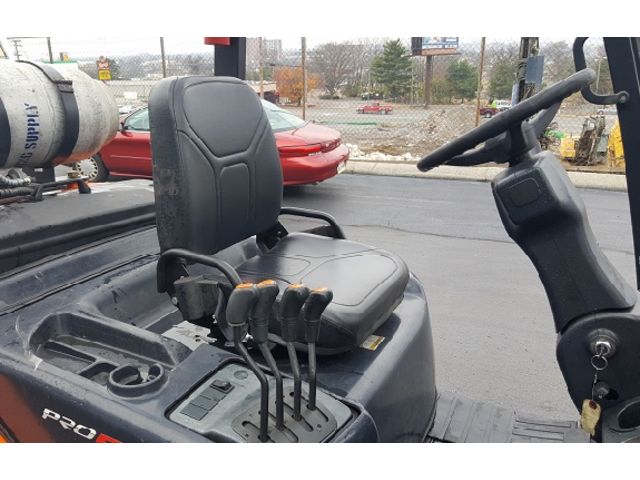

A comfortable deluxe suspension seat with Operator Sensing System (OSS), a large seatback angle, longer seat travel
length and operator’s weight resistance on front side allow multiple adjustments for optimum seating comfort.

• Parking alarm: Alarm warning when operator leaves the
  seat without applying parking brake.
• Seat belt indicator: 10 second warning light reminds
  operator to fasten seat belt.
• Neutral shift feature: Transmission is automatically
  shifted into neutral when the operator leaves the seat with
  the engine running and the direction lever in forward or
  reverse.

Wide open operator leg room, stepless tiltable steering column and ergonomically located operator pedals with a
low cowl height facilitate ease of operation.

This Option Pedal System will reduce the operators fatigue and provide best sense of drivability. Especially,
the new electronic accelerator will provide the operator with secure and exact speed control.

Oil cooled disc brakes are available as an option on all G(C)45S-5 series pneumatic and cushion forklifts and are especially recommended for applications in humid, abrasive or corrosive environments, or with ramp, loading and
unloading applications. This enclosed brake system eliminates outside contamination, significantly extending brake life and decreasing maintenance costs.

Oil cooled disc brakes have service intervals 5 times longer than conventional shoe brakes, and require little to no maintenance.

Top mounted control valve on the transmission precisely modulates clutch oil pressure for smooth forward / reverse directional changes, permitting on-the-go shifting up to 5mph.

• No mechanical connections between steering wheel and steer axle for reduced
  maintenance.
• Easy Access grease fittings for proper lubrication.
• Sealed tapered roller bearings offer protection against contamination and in
  high impact applications.
• Provides low effort steering with quick steering response.

A large capacity, dual element air cleaner permits long service intervals. The primary filter can be washed and re-used up to 5 times.

A high air intake on the overhead guard is standard, and aids in drawing clean, cool air into the engine intake system.

Strong one-piece cast housing keeps axle components aligned. High tensile strength alloy steel axle shafts extends axle life while splined side gear & drive wheel hub gears transmit high torque to the drive wheels.
