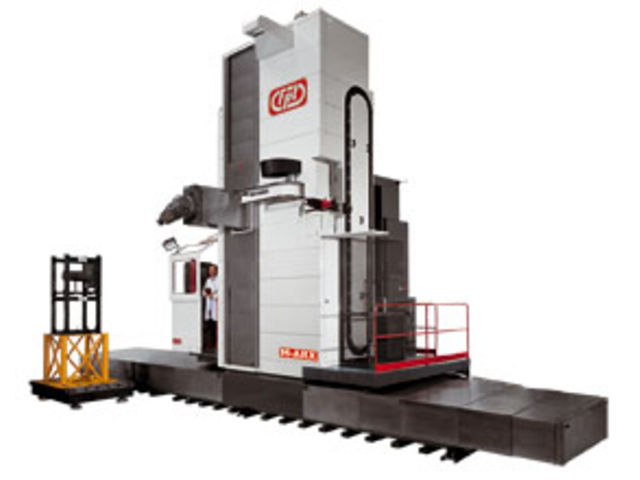

The machines series M-ARX is equipped with the high sophisticated technology of advanced HYDROSTATIC sliding system named MACHES, set up and patented by FPT.
Essential characteristics of these machines - even these patented - are the balancing and distribution systems for the dynamic oads, that is with machine moving on the 3 axes and the measurement and continuous compensation of the flexion of the main bodies as regards both to the mechanical and to the thermal aspect.
The high accuracy reached during boring machining together with the stiffness, almost absolute and exploitable during the milling phases, even in the most difficult ones, simplify the machining of big size mechanical parts and allow the solving of different manufacturing requirements with a single productive unit.
Grinder-boring tool Fpt M-Arx Axis X (mm) 20,000 Axis Y (mm) 5,OOOAxis Z (mm) 2,100 Spinner measurements Grinder-boring tool Fpt Area Axis X (mm) 12,000 Axis Y (mm) 3,500Axis Z (mm) 1,100 Spinner measurements Grinder-boring tool Fpt Sirio Axis X (mm) 9,OOOAxis Y (mm) 2,500Axis Z (mm) 1,100 Spinner measurements 5 axes work centreFpt Castel Terus 180 Axis X (mm) 3,000Axis Y (mm) 1,800Axis Z (mm)[…]
Grinder-boring tool Fpt M-Arx Axis X (mm) 20,000 Axis Y (mm) 5,OOOAxis Z (mm) 2,100 Spinner measurements
Grinder-boring tool Fpt Area Axis X (mm) 12,000 Axis Y (mm) 3,500Axis Z (mm) 1,100 Spinner measurements
Grinder-boring tool Fpt Sirio Axis X (mm) 9,OOOAxis Y (mm) 2,500Axis Z (mm) 1,100 Spinner measurements
5 axes work centreFpt Castel Terus 180 Axis X (mm) 3,000Axis Y (mm) 1,800Axis Z (mm) 1,800Spinner measurements
