EDWARDS SAS

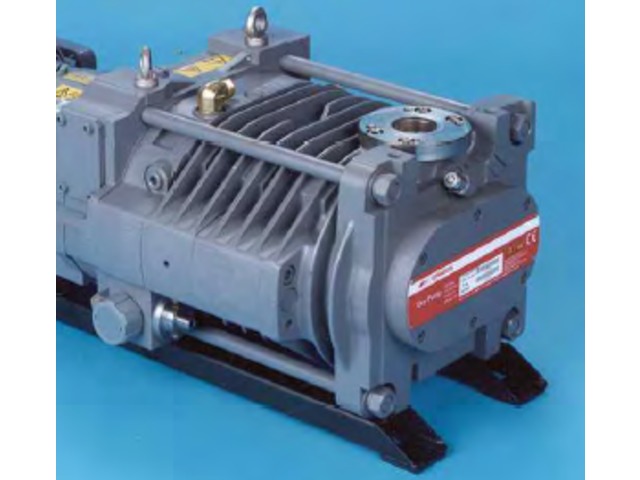

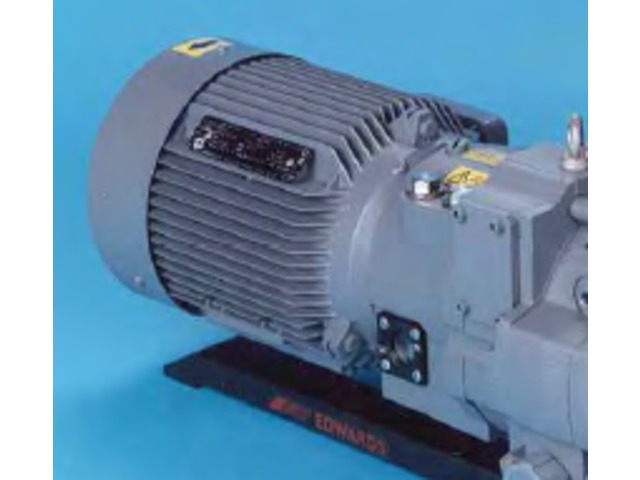

Medium and Large Dry Pumps and Systems : Drystar 80 PFPE SSP and Silencer 380-415V 50Hz EDWARDS SAS

Medium and Large Dry Pumps and Systems : Drystar 80 PFPE SSP and Silencer 380-415V 50Hz

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

Drystar80 is the most cost effective introduction to basic dry pumping. It is available as a stand-alone unit for 80 m3h-1 repeatable pumping performance; or in a combination with the respected EH500 hydrokinetic drive mechanical booster, offering 500 m3h-1 displacement for applications where increased pumping speed and/or lower vacuum levels are required. Depending upon the application the Drystar80 can be supplied with mineral oil or PFPE lubrication.

Peak Pumping Speed 50 Hz : 80 m3h-1 (47 cfm) Peak Pumping Speed 60 Hz : 94 m3h-1 (56 cfm) MotorPower : 4 kW Electrical supply : 200-230V 3Æ 50/60Hz or 380-460V 3Æ 50/60Hz Max cooling Water supply pressure : 8 bar (116 psig) Cooling Water DP across pump : 2.1 bar (30 psig) Cooling Water temp : 5-35 °C (41-95 °F) Cooling Water inlet : ½” Quick connect coupling Cooling Water outlet : ½” Quick connect plug Purge gas pressure : 0.5 bar (6-8 psig)

Drop your rating on Medium and Large Dry Pumps and Systems : Drystar 80 PFPE SSP and Silencer 380-415V 50Hz

Your answer to the rating from -

OTHER PRODUCTS VACUUM PUMP FROM EDWARDS SAS

Dry scroll pump 1ph 50/60 Hz : nXDS10i

Dry scroll pump 1ph 50/60 Hz : nXDS10i

 Ask for a quote
Scroll Pumps : nXDS10iC

Scroll Pumps : nXDS10iC

Ask for a quote
Dry claw pumps EDC

Dry claw pumps EDC

Ask for a quote

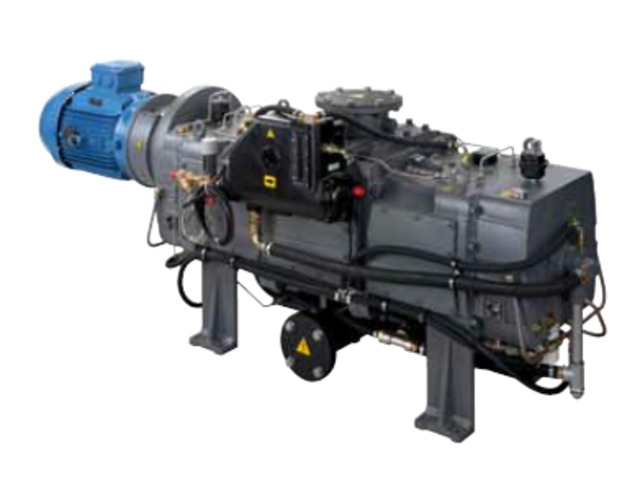

Medium and Large Dry Pumps and Systems : IDX1000 40 hp 60 Hz safe area extended performance
