Metal-Polymer hydrodynamic composite bearings : DTS10®

• The first polymer-lined precision bearing for lubricated conditions offering low friction and high wear resistance that is designed to be machined on-site for tight tolerances
• Excellent wear resistance and low friction in lubricated hydraulic applications
• Excellent chemical resistance, fatigue strength, cavitation and flow erosion resistance, and good behavior in dry start-up conditions
• A minimum overlay thickness of 0.1 mm permits, under carefully controlled conditions, machining of the assembled bore for improved dimensional tolerance and reduced geometric defects, while retaining a thin layer of PTFE sliding surface
• Compatible with most standard machining processes including turning, broaching, reaming, and milling
• Lead-free material compliant to EVL, WEEE, and RoHS specifications

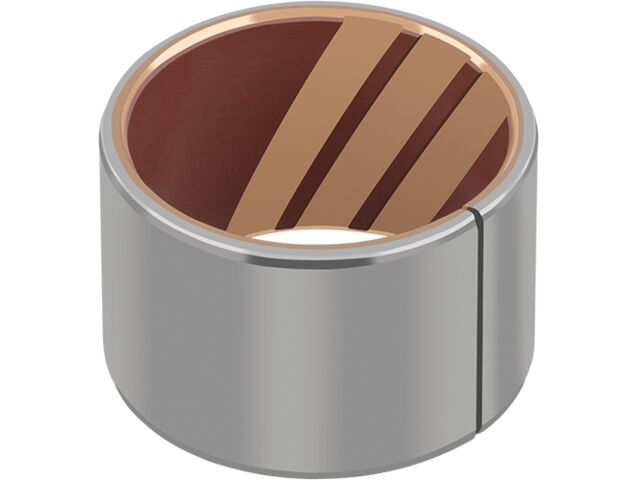

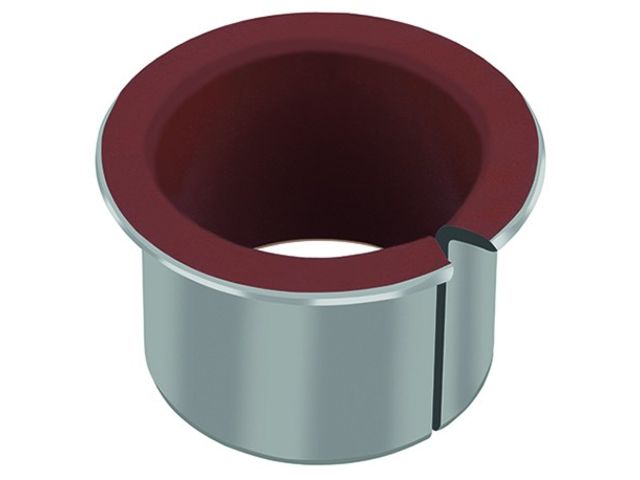

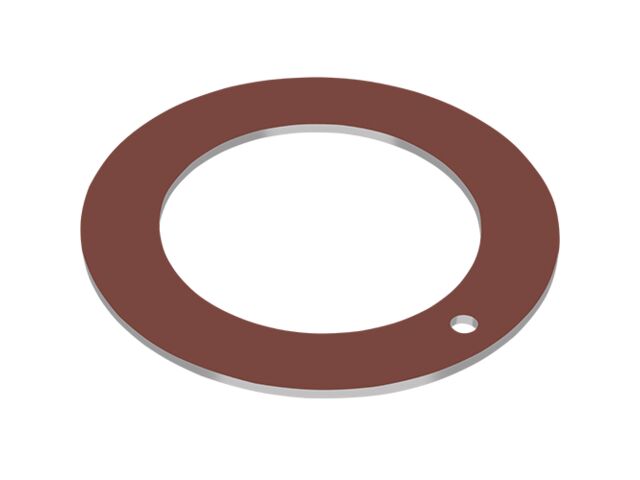

Bearing forms made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs
