A complete range of electro pump sets (Oil hydraulic) :
-
JTEKT HPI offers a complete range of electro pump sets from 0.25 to 30cm3/rev.
-
The exceptional output of HPI pumps enables a high motor duty to be envisaged.
-
The exclusive range of motors in direct current DC & AC micro electropump sets enables extremely compact units to be offered.
-
The HPI units can be equipped as standard with hydraulic functions incorporated in the rear body.
Micro electro-pump sets

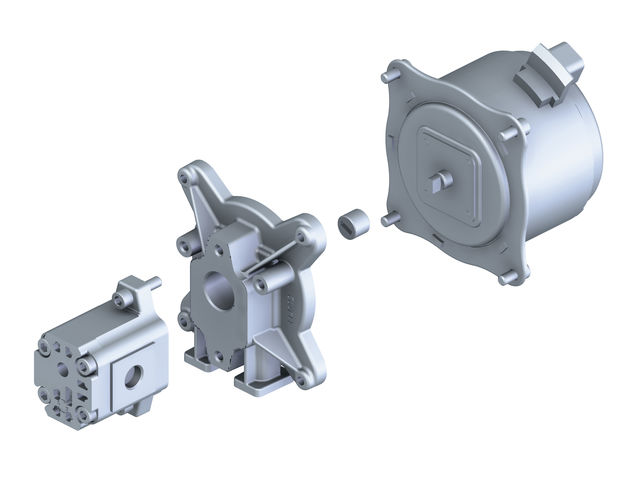

JTEKT HPI micro electro pumps sets are available in direct and alternating current versions. They allow a flow range to be covered from 0.2 - 12 l/min (12 and 24 V). They have exclusive JTEKT HPI motor enabling power and compactness to be combined. Coupled to series 0 pumps, these units have high output and duty, with a peak pressure of 280 bar. In direct current, powers from 0,4 to 1,2 kW (12 and 24 V) and in alternating current, from 0,26 to 1,1 kW (single and three-phase).
Mini electro-pump sets

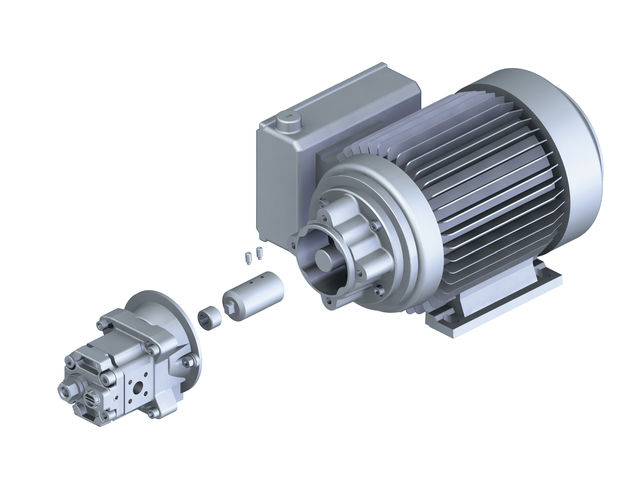

JTEKT HPI mini electro pumps sets are available in direct and alternating current versions. They allow a flow range to be covered from 2.7 - 26 l/min (12 and 24 V). Compact coupling allows overall dimensions to be limited, while offering a wide range of motor choices. Coupled with series 1 pumps, these units have an high output and duty, with a peak pressure of 300 bar. The range also includes electro pump sets equipped with series 2 pumps which can supply a flow from 7,6 to 52.2 l/min with direct or alternating current. In direct current, powers from 1,3 à 4 kW (12 and 24 V) and in alternating current from 0,75 to 4,4 kW (single and three-phase).
To accomplish complete functions, our electro pump sets can be equipped with functions on the rear body such as :
-
pressure relief valve
-
Decompression poppet valve
-
Anti return check valve, etc.
All industries
Public works
Agriculture
Road maintenance
Aeronautic
