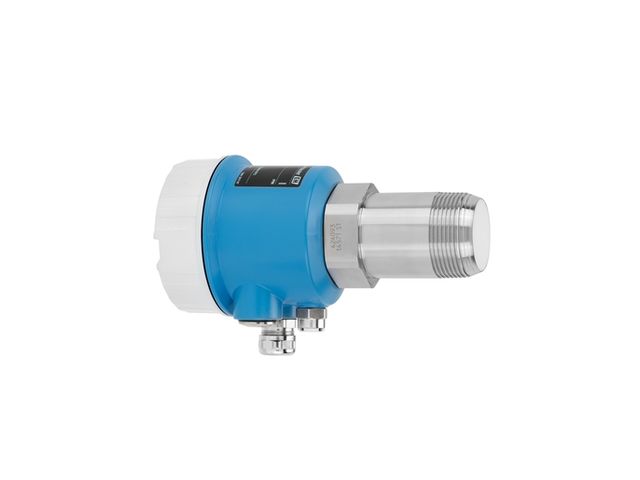

Microwave barrier receiver - Soliwave FDR57

Level indication

Vote

“ Non-contact point level detection and flow monitoring ”

Ask for a quote

Presentation

Transceiver for non-contact point level detection and bulk flow monitoring.

The Soliwave microwave barrier uses a non-contact procedure for detection of point levels and bulk flow (flow / no flow, trend). The device is also suitable for detecting and counting objects, detection of deposits as well as monitoring of filling processes and material transfer points.

It can be installed in containers, conduits, hoppers, filling stations, shafts, filters or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside.

Technical features

Process temperature Non-contact installation: any Within installation: -40 °C ... +70 °C (-40 °F ... +158 °F) With HT-Adapter: up to +450 °C (+842 °F) Process pressure absolute / max. overpressure limit Noncontact installation: any Within installation: 0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs. With HD-Adapter: up to +21 bar (+305 psi) abs. Min. density of medium Solid weight: > 10 g/l Detecting, counting and positioning of objects Monitoring of material transfer points Detection and analysis of deposits and contamination Non-contact installation (tranmission window) or front-flush installation (contact)

Download the complete technical features
