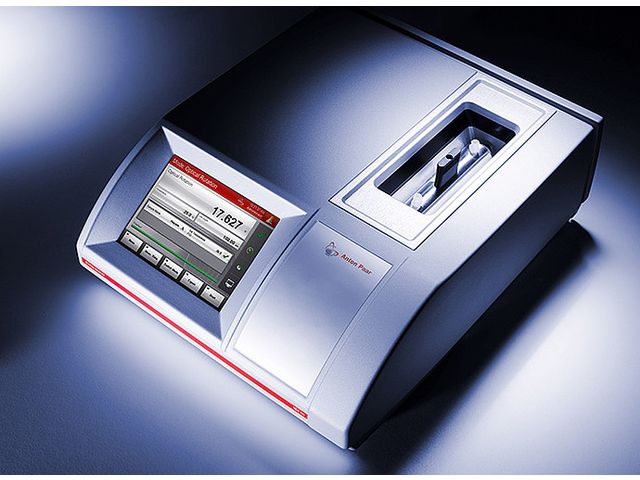

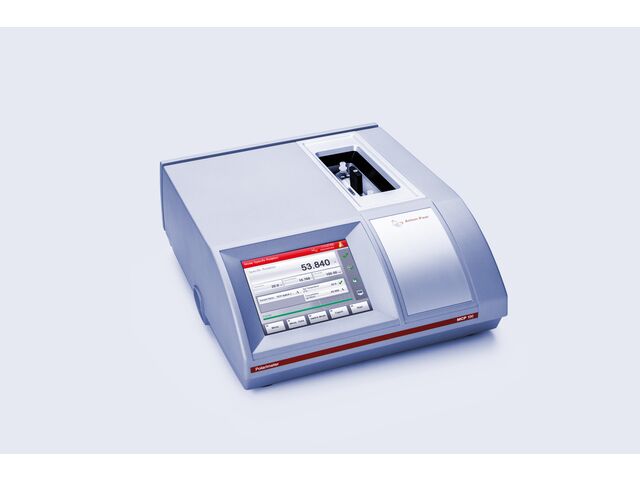

Modular compact polarimeter: MCP

Polarimeter

Vote

“ Whenever lab bench space is limited, MCP 1X0 is the right choice Small footprint (less than two notebook pages) Lightweight instrument with enormous robustness Ideal for multiparameter setup, e.g. combination with a refractometer or density meter Designed for ultimate ease of use Built-in Peltier temperature control Wireless identification of quartz plates and sample cells Temperature is wirelessly transferred from the sample cell to the instrument Color touchscreen for easy navigation Fulfills regulations for quality management and international compliance Full compliance to 21 CFR Part 11 (MCP 150) Compliance to national and international pharmacopeias Outstanding feature set for your individual requirements Password protection for maximum safety User level management for easy access control User group administration (MCP 150) for simplification of access rights and permissions Audit trail for full traceability Electronic signature for approval of measurement data (MCP 150) Wireless sample cells for seamless measuring procedures Built-in temperature sensor with wireless data transfer to the instrument Different stainless steel classes for high material resistance Water-proof design combined with cables or connectors which makes it easy to clean Cell length protocol for all relevant mechanical dimensions according to ICUMSA and OIML ”

Ask for a quote

Presentation

The MCP 100/150 polarimeters are the right choice for routine quality control and universities, especially for pharmaceutical applications (MCP 150) and the flavor and fragrance industry. MCP 150 offers 21 CFR Part 11 compliance. The easy-to-use touchscreen supports fast navigation with unparalleled simplicity, and the multiple measurement capabilities and customized methods provided by MCP 150 make both routine and more complex measurements extremely easy. The powerful Peltier temperature control guarantees fast and even temperature distribution. With the intelligent Toolmaster™ technology, the connected sample cell or quartz control plate is automatically detected wirelessly. This eliminates user errors and ensures that every change is recorded in the audit trail. LIMS and FTP connectivity are fully supported.

Technical features

Measurement scales: optical rotation, specific rotation, %concentration, user defined scales Measurement range: 89.9° Resolution: 0.001° Accuracy: 0.004° Response time: 12 sec. max. Light source: LED with an average life of 100,000 hours Sensitivity: Light intensity control compensates for attenuation up to an optical density (OD) of 2.0

Download the complete technical features

Usage scope

Pharmaceutical cosmetic Chemicals Food

Opinion on the product

Drop your rating on Modular compact polarimeter: MCP

Your answer to the rating from -

OTHER PRODUCTS POLARIMETER FROM Anton Paar France

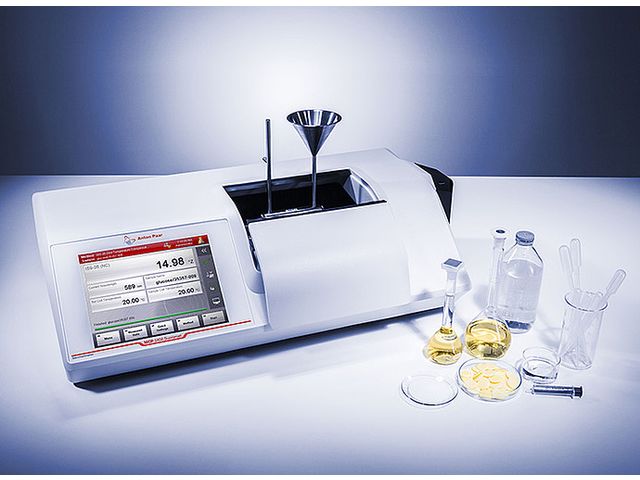

Modular circular saccharimeter : MCP Sucromat
