ModuLine Temperatur Sensor | iTHERM TM121 Endress+Hauser France

ModuLine Temperatur Sensor | iTHERM TM121

Vote

“ - Economical, reliable measurement - User-friendly from product selection to maintenance - Wide range of process connections - Easy and safe device setup and service using Bluetooth® communication ”

Ask for a quote

Presentation

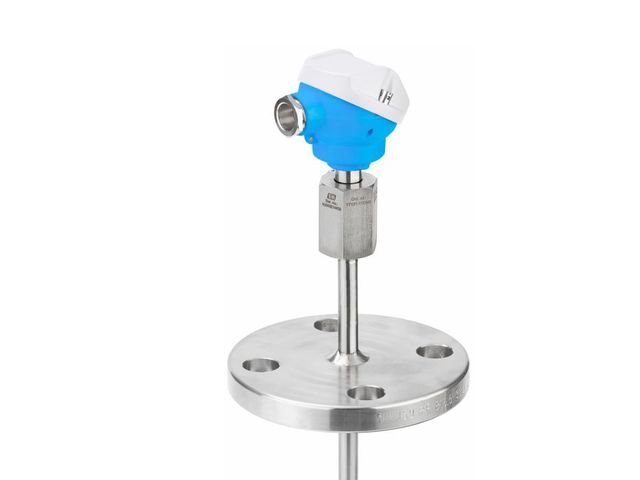

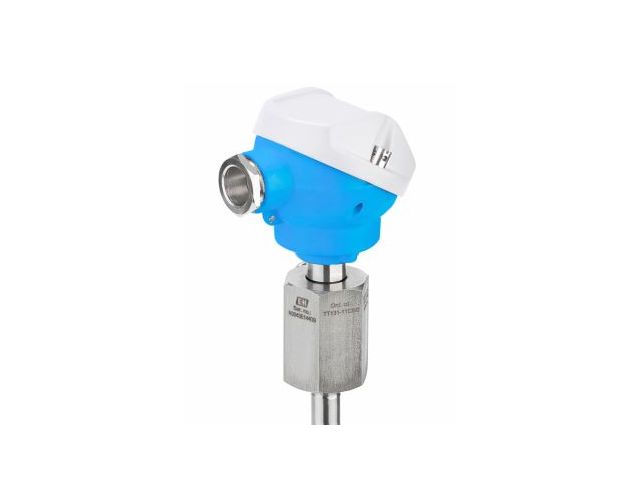

Thermometer with RTD or TC insert complete with manufactured thermowell produced from pipe material

RTD or TC assembly characterized by basic sensor technology, application in non-hazardous areas, standard extension neck, low-cost unit. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.

Technical features

Measuring principle : Resistance Temperature Detector Max. immersion length on request : up to 1.000,0 mm (39'') Material protection tube/ thermowell : 316L (1.4404) Integration head transmitter : yes (4 … 20 mA; HART)

Download the complete technical features

Usage scope

Universal range of application Application in non-hazardous areas Measuring range : –50 to +650 °C (–58 to +1202 °F) Pressure range up to 50 bar (725 psi) Degree of protection : up to IP 68
