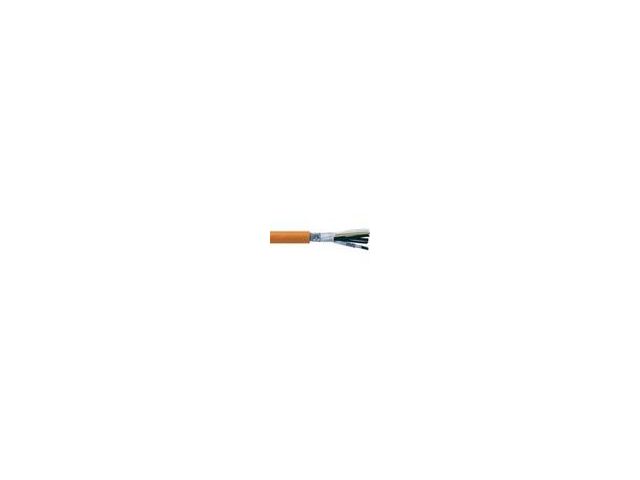

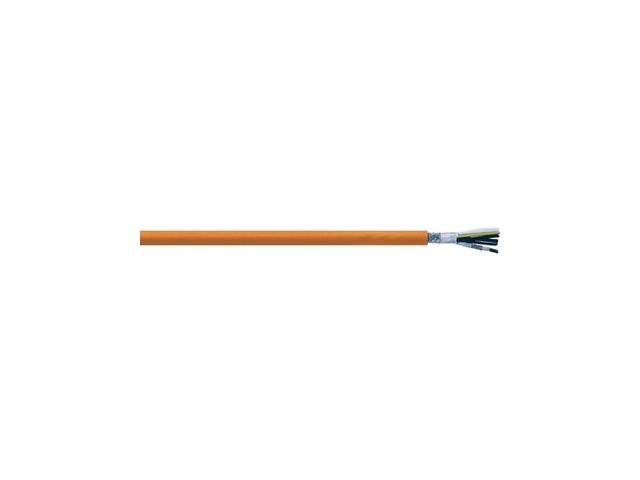

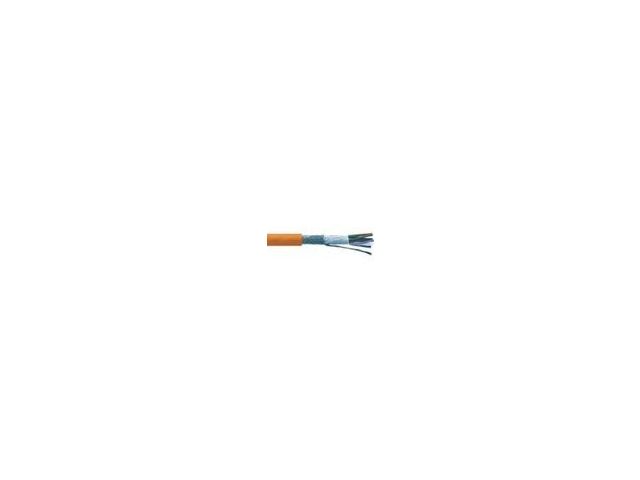

Motor and resolver/encoder cables - certified
Servomotor- and feedback cables in acc. to INDRAMAT® standard, for dynamic power chain application, UL/CSA AWM certified
-
Servo drives
-
PUR outer sheath
-
EMC-compliant
Benefits
-
Allows much faster speed and accelerations which increases the economic efficiency of the machines
-
Multi-standard certification reduces part varieties and saves costs
-
Increased durability under harsh conditions thanks to robust PUR outer sheath
-
Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
-
Connecting cable between servo controller and encoder/resolver
-
Connecting cable between servo controller and motor
-
Particularly in wet areas of machine tools and transfer lines
-
Assembly lines, production lines, in all kinds of machines
Product features
-
Designed for 5 million alternating bending cycles
-
For horizontal travel distances up to 100m
-
Abrasion and cut-resistant, halogen-free, oil-resistant
-
Flame-retardant according to IEC 60332-1-2 & CSA FT1
Norm references / Approvals
-
Power cable:
UL Style 20234, CSA AWM I/II A/B
-
Signal cables:
UL Style 20236, CSA AWM I/II A/B
-
UL File No. E63634
-
For use in power chains: Please comply with assembly guideline Appendix T3
Product Make-up
-
In accordance with INDRAMAT® standard INK (also suitable for pre-assembled versions, IKS and IKG)
-
Core insulation: TPE
-
Refer to data sheet for more details
-
Tinned-copper braiding
-
PUR outer sheath, orange (RAL 2003)
