Appareil de mesure : Exos Fuite / O2_Anéolia_2

O2 gas analysis, micro-leak measurement, system packaging sealing resistance : Exos Leak / O2 Anéolia

O2 gas analysis, micro-leak measurement, system packaging sealing resistance : Exos Leak / O2

Leak detectors

Vote

Ask for a quote

Presentation

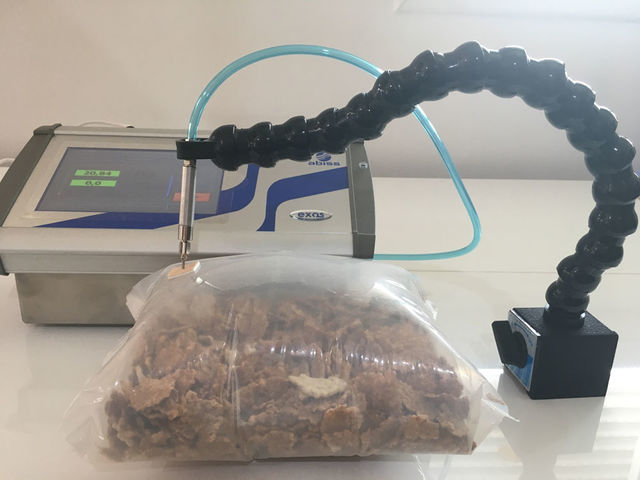

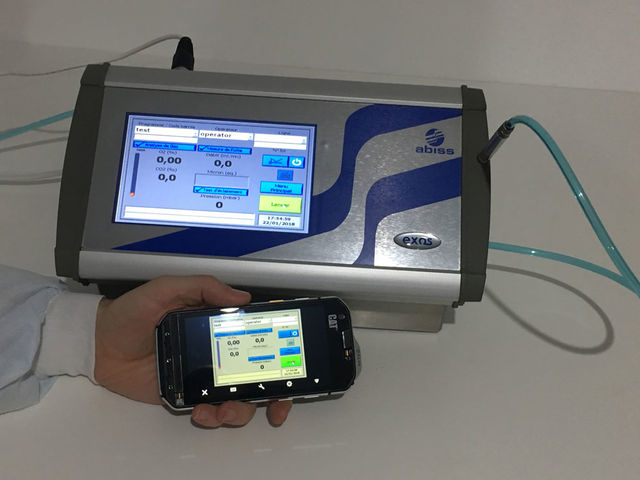

The EXOS LEAK / O2 allows you to measure the rate of O2 and the airtightness for all types of packaging, containers and pneumatic circuits. This measurement device also checks the resistance of sealing using a bursting test. These three tests can be carried out in quick succession on the same packaging. The EXOS lets you inspect the integrity of your packaging, and can be used in the laboratory as well as during the manufacturing process.
THE + PRODUCTS
    The option of combining 3 measurements in 1 same test: O2 gas analysis; Micro-leaks; Bursting
    Standards :
        DIN 55508-1 : Flow measurement under constant pressure
        ASTM F1140 – Seal resistance
        ASTM F2054 – Burst testing
    Blocked circuit detection
    Measures with low excessive pressure
    Breathability measurement (micro-perforated films)
    Fully traceable via an internal spreadsheet
    Excessive pressure can be fitted manually or automatically
    Remote maintenance 7 days a week, with remote connection available

Technical features

Ingress protection of enclosure IP 41 (54 option) Measurement device Bench-mounted Enclosure Enclosure Aluminium, stainless steel, ABS Weight 5 kg Width 340 mm Height 170 mm Depth 230 mm Power 100-240VAC -50/60Hz - 63W Storage conditions 0 - 70°C / 0 - 90% HR Terms of use 0 - 40°C / 10 - 90% HR Display Color touchscreen 7’’ Digital interfaces 1 USB 2.0 and 1 Ethernet RJ45

Download the complete technical features
