Panel loader : TK 850 TEKNA

Panel loader : TK 850

Industrial trailers

Vote

Ask for a quote Receive Documentation Contact the supplier

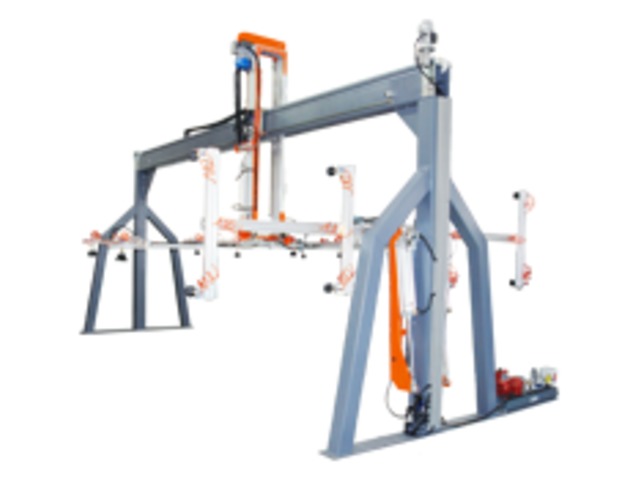

TK 850 is a traveling lift that allows to automatically load panels by means of a lifting device made up by frames equipped with suction cups. This system allows to lift and rotate the panel and to position it on the machining centre, with the surface to be machined readily accessible without moving it.

TK 850 is managed by the CN of the TK 429 V machining centre and it is an integrating component of it.

Iron structure made up by two columns that support the superior beam. The linear recirculating ball slide guides and the Y-axis motor are mounted on this beam. The loader frame is fixed on the front column.

Aluminium extrusions are fixed on the superior beam. The translator frame, the linear slides and the recirculating ball screw of the Z-axis are mounted on the extrusions.

Aluminium suction cup holder frames. Each frame is equipped with 8 bellows suction cups to facilitate and ensure the panel lifting. You can manually adjust the suction cup position, according to the size of the load.

A safety leverages system is fixed on the translator frame as a load support.

Vacuum pump with vacuometer to measure the vacuum level that is needed for the suction cups to operate properly.

Carriage for the pallet.

External protection net.
