PCI analog I/O board APCI-3120

Vote

Ask for a quote

Presentation

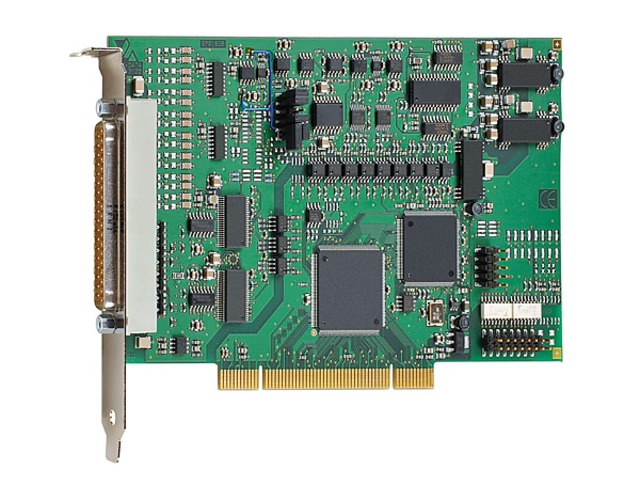

The PCI analog I/O board APCI-3120 has 16 SE/8 differential inputs, 16-bit, 8/4 analog outputs, 14-bit, and 8 digital I/O, 24 V. The board is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data etc. A timer, that can be used as cyclical time counter or as watchdog is available.
64-bit drivers for Windows 8/7/Vista/XP and Linux as well as programming samples are included, real-time drivers for Windows and Linux are available on request.

Technical features

16 SE/8 diff. inputs, 16 bit 8/4 analog outputs, 14-bit Optical isolation of the inputs and outputs, 500 V PCI DMA, programmable gain Trigger functions 8 digital I/O 24V, optically isolated, timer On-site calibration with the CAL3120 option

Download the complete technical features

Usage scope

Chemical and industrial process control Industrial measurement and monitoring Acquisition of multichanel, sensor and pressure data and current measurement Factory Automation Laboratory equipment, instrumentation
