Pinch Control Valve type 7079

Sleeve valves

Ask for a quote

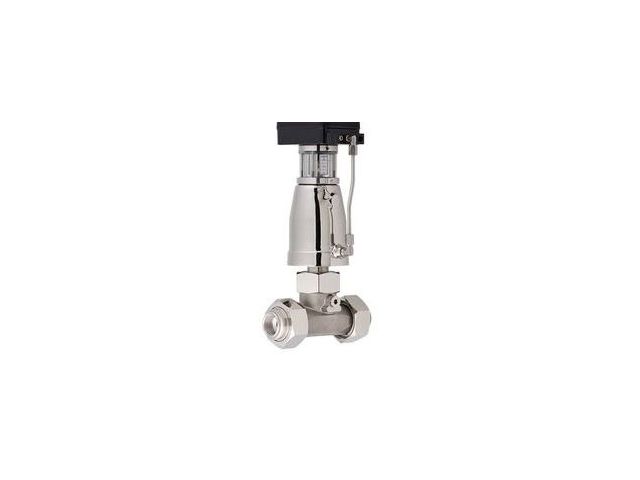

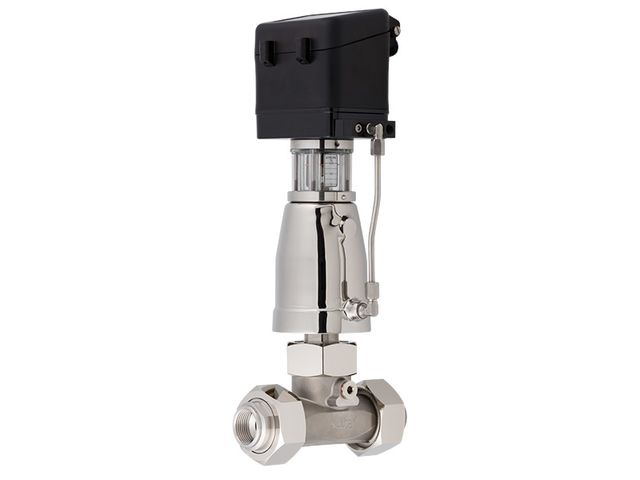

The pneumatic pinch valve type 7079 is a low dead space control valve and at the same time insensitive to dirty, abrasive and pasty media. Decisive for universal use is the straight hose passage for the operating medium - no flow deflection. The hygienic design using FDA-compliant tube materials as well as the simple design principle offer users from the chemical, food and pharmaceutical industries a real alternative.

learn more: https://controlsystems.schubert-salzer.com/en/pinch-valves/type/7079/

Technical features

Size: DN 15 - DN 50 Pressure: PN 6 Material: Stainless steel 1.4408 (non-wetted part) Temperature: Media temperature: -30 °C to +130 °C depending on the tube material

Download the complete technical features

OTHER PRODUCTS SLEEVE VALVES FROM Schubert & Salzer Control Systems GmbH

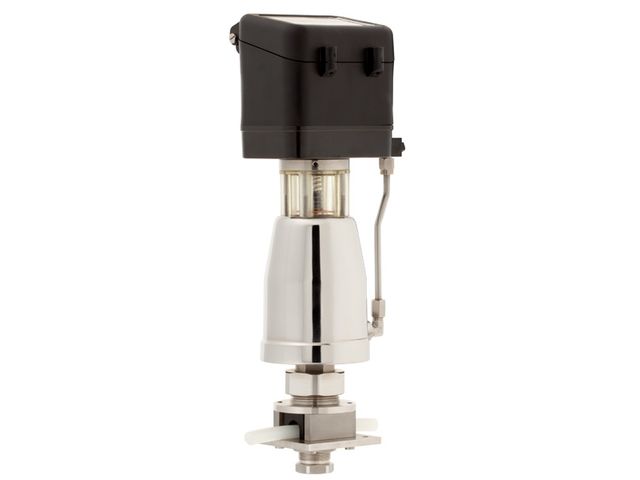

Pinch control valve type 7077
