Piston Seals Turcon AQ-Seal 5 Seals-Shop.com - Trelleborg Sealing Solutions Germany GmbH

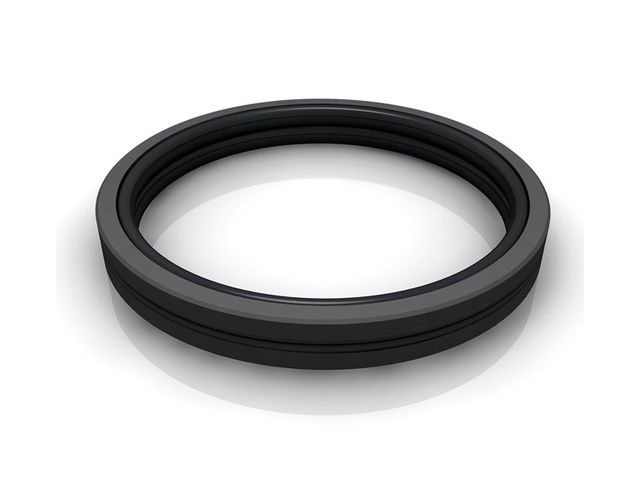

Piston Seals Turcon AQ-Seal 5

Piston gasket

Vote

Ask for a quote

Presentation

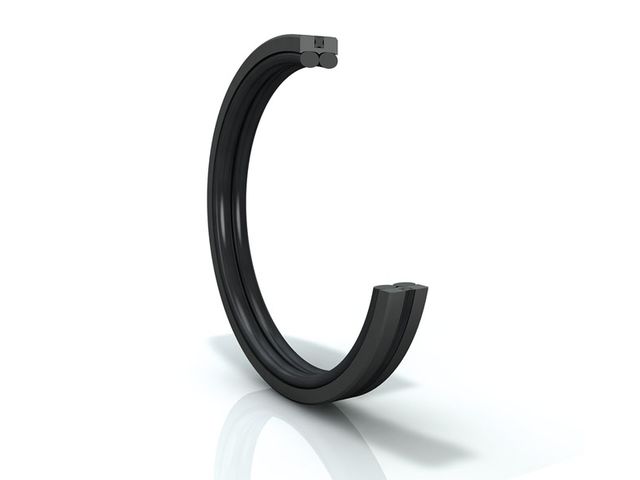

The double-acting Turcon AQ Seal 5 incorporates an elastomer Quad-Ring and is energized by two O-Rings to improve sealing behavior. It demonstrates excellent results in applications requiring media separation, e.g fluid/fluid or fluid/gas. Works well in higher pressure applications and has a higher sliding speed compared to the AQ Seal.

Technical features

Size Range: 40 mm to 600 mm Temperature: -30 °C to 200 °C Pressure (max): 50 MPa Speed (max) 3 m/s

Download the complete technical features

Opinion on the product

Drop your rating on Piston Seals Turcon AQ-Seal 5

Your answer to the rating from -

Latest requests

Sehr geehrte Damen und Herren, ich bräuchte einen Turcon ®AQ-Seal ®5 T46N mit di332.00 da360.00 Er wird schnellstmöglich in Kassachstan benötigt. Was würde das denn kosten Mit freundlichen Grüßen Johannes Praske
