SENGA sas

Pneumatic Drivers - EV Series SENGA sas

Pneumatic Drivers - EV Series

Accessories for valves and solenoid valve

Vote

“ ✔ VDE standard 0580 ”
Ask for a quote Receive Documentation Contact the supplier

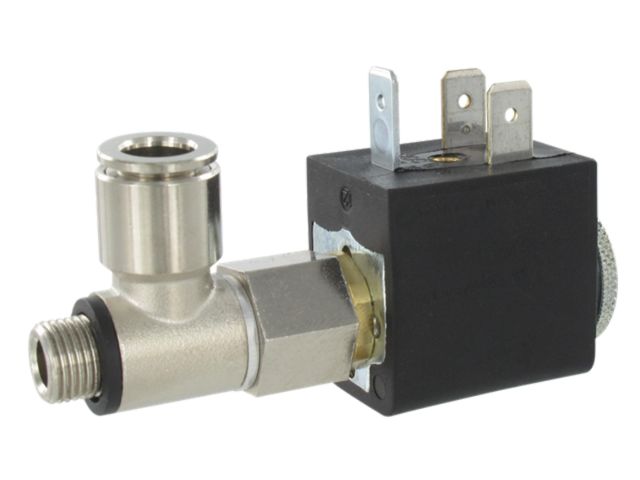

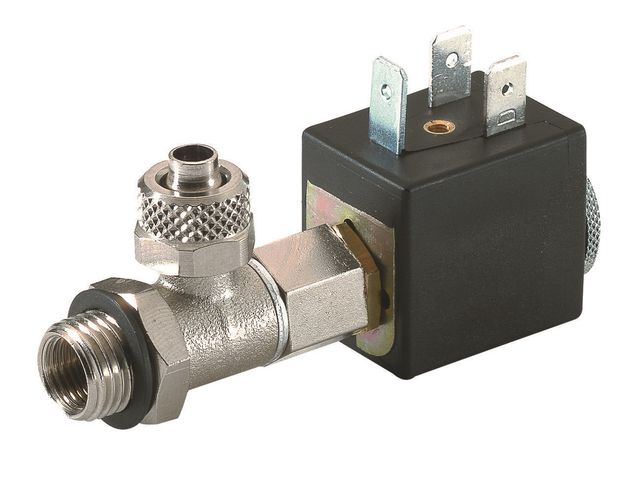

The EV series of pneumatic solenoids, marketed by SENGA, are used in applications with filtered air, lubricated or not.

With a power of 9 VA in AC and 6 W in DC, the EV series operates at a maximum temperature (T + AT) of 140°C (see formula on data sheet). They have class F insulation, VDE 0580 standard.

With a pressure rating of 0 to 12 bar, these solenoids have a 1 mm diameter passage, M5 collectable exhaust, 3-way, and a cylindrical thread...

They are also equipped with form B coils that operate at a voltage of V24 - 48 - 110 - 220 / 50 Hz or V12 - 24 - 48 in DC.

https://www.senga.fr/en/products-e-shop


Maximum temperature: T + AT = 140° C - T (ambient or fluid temperature) - AT (coil temperature after 1 hour of operation 80 / 90°) Normally closed kv: 0.8 l/min Cylindrical thread Coils form B: - V24 - 48 - 110 - 220 / 50 Hz - V12 - 24 - 48 / DC Insulation class F, VDE 0580 Operating pressure: between 0 bar and 12 bar

Industry Industrial pneumatics Compressed air Industrial automation Pneumatic controllers
