Pneumatic metal spool valves - Series 128 SENGA

Pneumatic valves

Vote

“ ✔ High flow rate ✔ Simple installation ✔ Reliability ✔ Quality/price ratio ✔ Design ✔ Made in EU ”

Ask for a quote

Presentation

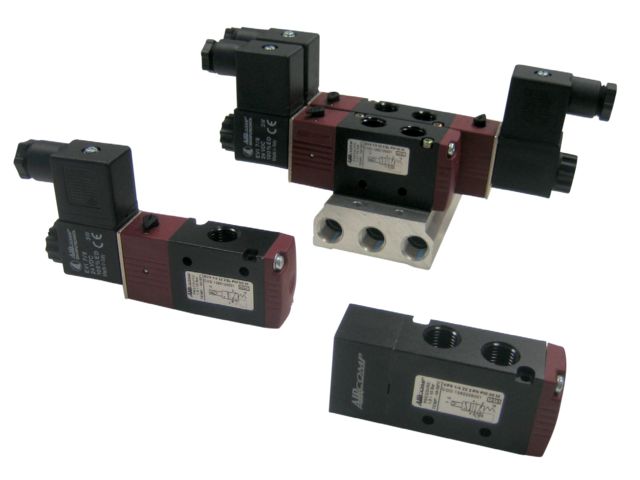

Our new 128 series of metal pneumatic spool valves has been designed to meet the growing demands of the market.
Today we are proud to present a European product that combines reliability, performance, design and excellent value for money.

Operating with filtered compressed air (with or without lubrication), our pneumatic spool valves ensure high flow rates: up to 1,000 Nl/min, at a working temperature between -5°C and +50°C.

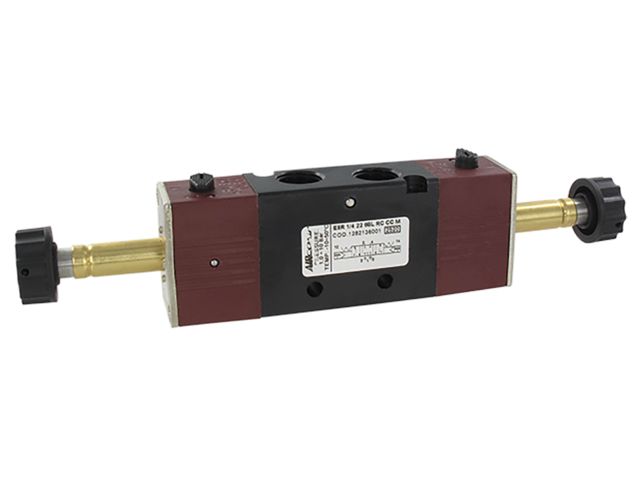

Our range includes two versions: pneumatically operated valves and electro-pneumatically operated valves, all available in 3/2, 5/2 and 5/3 functions.

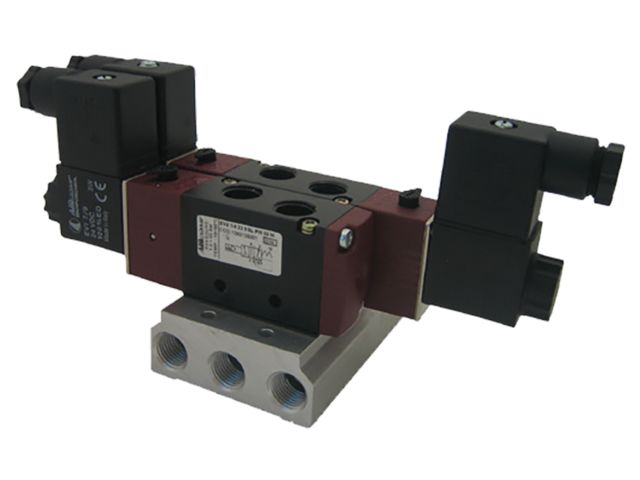

Finally, they are very easy to install using the ports in the body and can also be installed in a battery with a manifold base.

We invite you to discover our 128 AIRCOMP series of spool valves now by consulting our catalogue.

https://www.senga.fr/en/products-e-shop

Technical features

Construction: 3/2 - 5/2 - 5/3, spool type Fluid: filtered compressed air (with/without lubrication) Installation: single use through holes in the body/battery with manifold Type of connection: G1/4 Working temperature: min = -5°C max = 50°C Flow rate (P = 6bar - Δp = 1bar): from 500 to 1,000 Nl/min Materials: aluminium and technopolymer
