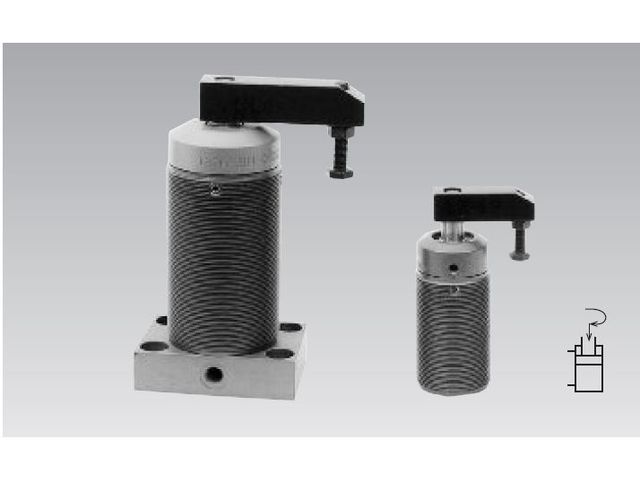

Pneumatic Swing Clamp J 7.201 ROEMHELD

Pneumatic Swing Clamp J 7.201

Rotating pneumatic cylinder

Vote

Ask for a quote Receive Documentation Contact the supplier

Application
Pneumatic swing clamps are used for applications which require only low clamping forces. The installed magnetic piston allows monitoring of clamping and unclamping position.

Description

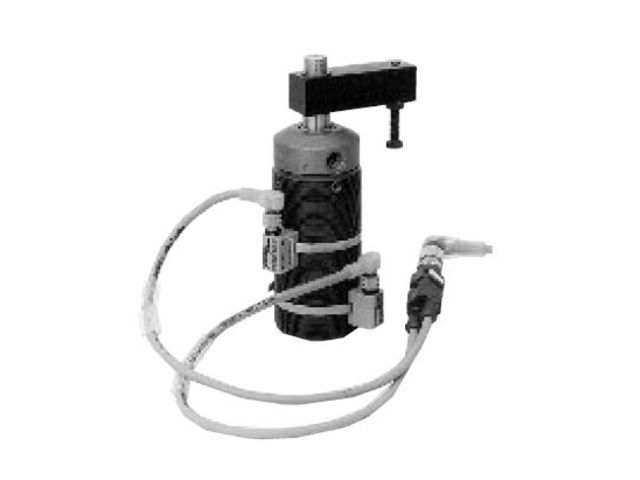

When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm. Monitoring is made by electronic sensors (see accessory) which detect the magnetic field of the magnetic piston. The switching points can be continuously adjusted by displacement of the magnetic sensors.

Download the complete technical features
